4) Consider a JK?¹ flip flop, i.e. a JK flip-flop with an inverter between external input K' and internal input K. a) Obtain the characteristic table b) Obtain the characteristic equations c) Show that tying the two external inputs together forms a D flip- flop.

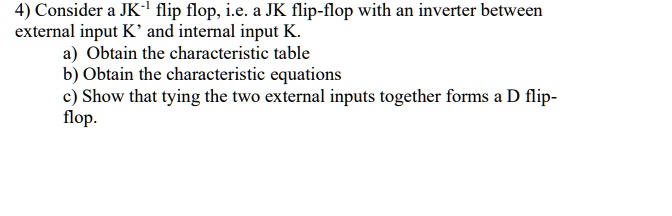

          4) Consider a JK?¹ flip flop, i.e. a JK flip-flop with an inverter between
external input K' and internal input K.
a) Obtain the characteristic table
b) Obtain the characteristic equations
c) Show that tying the two external inputs together forms a D flip-
flop.

4) Consider a JK?¹ flip flop, i.e. a JK flip-flop with an inverter between
external input K' and internal input K.
a) Obtain the characteristic table
b) Obtain the characteristic equations
c) Show that tying the two external inputs together forms a D flip-
flop.

Added by Kenneth S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/21/2023

Step 1

This means that when K' is 0, K is 1 and vice versa. So, the characteristic table becomes: | J | K' | Qnext | Comment | |---|---|-------|---------| | 0 | 0 | 1 | Set | | 0 | 1 | Q | No change| | 1 | 0 | Q' | Toggle | | 1 | 1 | 0 | Reset Show more…
