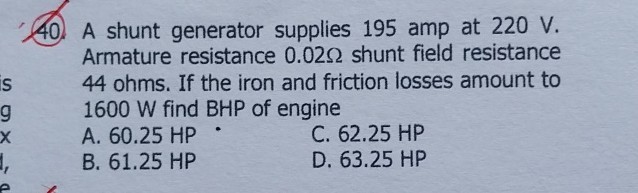

40. A shunt generator supplies 195 amp at 220 V . Armature resistance \( 0.02 \Omega \) shunt field resistance 44 ohms. If the iron and friction losses amount to 1600 W find BHP of engine A. 60.25 HP C. 62.25 HP B. 61.25 HP D. 63.25 HP
Added by Jose Miguel Y.
Close
Step 1
The output power (Pout) is given by the product of the current (I) and the voltage (V), so Pout = IV = 195A * 220V = 42900W or 42.9kW. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 71 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

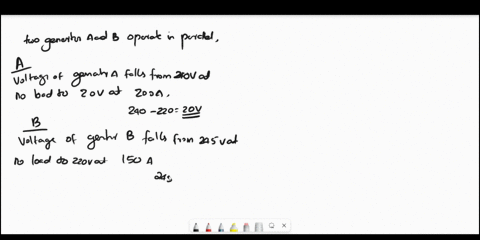

Two shunt generators A & B operates in parallel and their load characteristics may be taken as straight line. The voltage of generator A falls from 240V at no-load to 220V at 200 A while that of B falls from 245V at no-load to 220V at 150 A. Determine the common terminal voltage when supplying a 67 kW load.

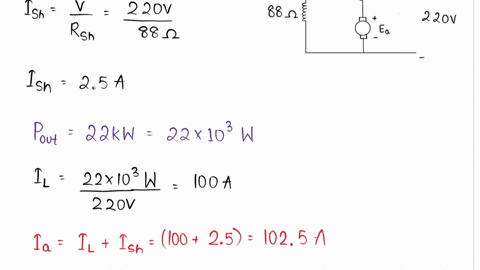

The field and armature resistances of a 220 V DC shunt machine are 88 Ω and 0.05 Ω, respectively. Calculate the total developed power when the machine operates as follows: 4.4.1 As a generator delivering output power of 22 kW. [Ans: 23.075 kW] 4.4.2 As a motor with 22 kW input power. [Ans: 20.974 kW]
