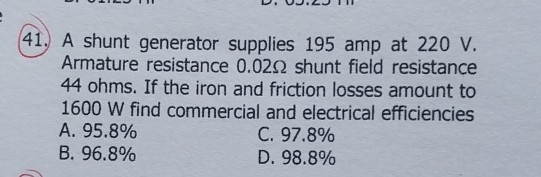

(41.) A shunt generator supplies 195 amp at 220 V . Armature resistance \( 0.02 \Omega \) shunt field resistance 44 ohms. If the iron and friction losses amount to 1600 W find commercial and electrical efficiencies A. \( 95.8 \% \) B. \( 96.8 \% \) C. \( 97.8 \% \) D. \( 98.8 \% \)
Added by Esther O.
Close
Step 1
First, let's calculate the total power input to the generator: \( P_{in} = V \times I = 220 \times 195 = 42900 \, W \) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 56 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
1. A 10 kW, 250 V, dc shunt motor with an armature resistance of 0.8 Ω and a field resistance of 275 Ω takes 3.91 A, when running light at rated voltage and rated speed. Calculate the following: (a) Shunt field losses and rotational losses (b) Calculate the machine efficiency as a generator when delivering an output of 10 kW at rated voltage and speed and as a motor drawing an input of 10 kW.
Adi S.

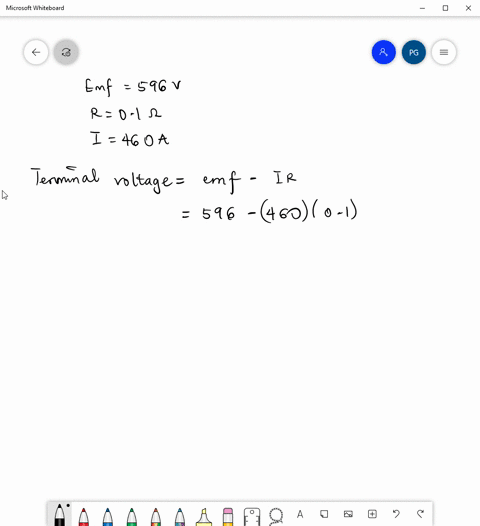

The emf induced in the armature of a shunt generator is $596 \mathrm{~V}$. The armature resistance is $0.100 \Omega .$ (a) Compute the terminal voltage when the armature current is 460 A. (b) The field resistance is $110 \Omega$. Determine the field current, and the current and power delivered to the external circuit.
