Question

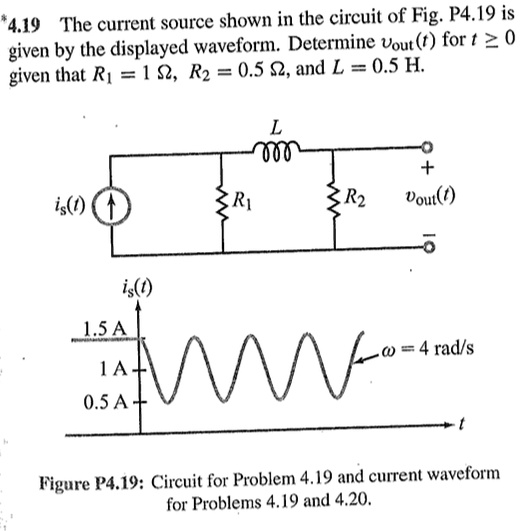

4.19 The current source shown in the circuit of Fig. P4.19 is given by the displayed waveform. Determine vout(t) for t ? 0 given that R1 = 1 ?, R2 = 0.5 ?, and L = 0.5 H. L + is(t) R1 R2 vout(t) - is(t) 1.5 A ? = 4 rad/s 1 A 0.5 A t Figure P4.19: Circuit for Problem 4.19 and current waveform for Problems 4.19 and 4.20.

Name: 4.19 The current source shown in the circuit of Fig. P4.19 is given by the displayed waveform. Determine vout(t) for t ? 0 given that R1 = 1 ?, R2 = 0.5 ?, and L = 0.5 H. L + is(t) R1 R2 vout(t) - is(t) 1.5 A ? = 4 rad/s 1 A 0.5 A t Figure P4.19: Circuit for Problem 4.19 and current waveform for Problems 4.19 and 4.20.
Uploaded: 2023-06-19T11:27:02-08:00
Duration: 1 min 34 s
Channel: Adi S
Description: 4.19 The current source shown in the circuit of Fig. P4.19 is given by the displayed waveform. Determine vout(t) for t ? 0 given that R1 = 1 ?, R2 = 0.5 ?, and L = 0.5 H. L + is(t) R1 R2 vout(t) - is(t) 1.5 A ? = 4 rad/s 1 A 0.5 A t Figure P4.19: Circuit for Problem 4.19 and current waveform for Problems 4.19 and 4.20.

          4.19 The current source shown in the circuit of Fig. P4.19 is given by the displayed waveform. Determine vout(t) for t ? 0 given that R1 = 1 ?, R2 = 0.5 ?, and L = 0.5 H. L + is(t) R1 R2 vout(t) - is(t) 1.5 A ? = 4 rad/s 1 A 0.5 A t Figure P4.19: Circuit for Problem 4.19 and current waveform for Problems 4.19 and 4.20.

4.19 The current source shown in the circuit of Fig. P4.19 is given by the displayed waveform. Determine vout(t) for t ? 0 given that R1 = 1 ?, R2 = 0.5 ?, and L = 0.5 H. L + is(t) R1 R2 vout(t) - is(t) 1.5 A ? = 4 rad/s 1 A 0.5 A t Figure P4.19: Circuit for Problem 4.19 and current waveform for Problems 4.19 and 4.20.

Added by Kenneth B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

06/19/2023

Step 1

5A. Show more…

Show all steps

Thanks for your feedback!

The current source shown in the circuit of Fig. P4.19 is given by the displayed waveform. Determine vout(t) for t ≥ 0 given that R1 = 1 ̐, R2 = 0.5 ̐, and L = 0.5 H. L = 0.5 H + vout(t) R1 R2 is(t) 1.5 A ̐ = 4 rad/s 1 A 0.5 A Figure P4.19: Circuit for Problem 4.19 and current waveform for Problems 4.19 and 4.20
