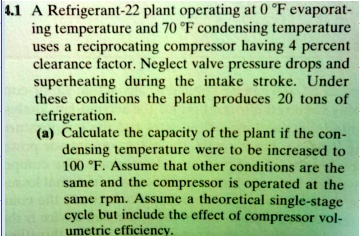

4.1 A Refrigerant-22 plant operating at 0 °F evaporating temperature and 70 °F condensing temperature uses a reciprocating compressor having 4 percent clearance factor. Neglect valve pressure drops and superheating during the intake stroke. Under these conditions the plant produces 20 tons of refrigeration. (a) Calculate the capacity of the plant if the condensing temperature were to be increased to 100 °F. Assume that other conditions are the same and the compressor is operated at the same rpm. Assume a theoretical single-stage cycle but include the effect of compressor volumetric efficiency.
Added by Andrew G.
Close
Step 1
To calculate h1, we need to use the refrigerant tables for Refrigerant-22 at 70F condensing temperature. From the tables, we find that h1 = 141.5 Btu/lb. To calculate h4, we need to use the refrigerant tables for Refrigerant-22 at 0F evaporating temperature. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
An ideal vapor-compression refrigeration cycle operates at a steady state with Refrigerant 134a as the working fluid. Saturated vapor enters the compressor at -10°C, and saturated liquid leaves the condenser at 28°C. The mass flow rate of refrigerant is 5 kg/min. Show the process on a T-S diagram, labeling the two temperatures on the y-axis, and determine: (a) The compressor power, in kW. (b) The refrigerating capacity (Q̇in), in tons (1 ton = 211 kJ/min). (c) The coefficient of performance. Take: h_evaporator,out = h_compressor,in = 241.35 kJ/kg h_compressor,out = h_condenser,in = 267.9 kJ/kg h_valve,out = h_evaporator,in = 88.61 kJ/kg

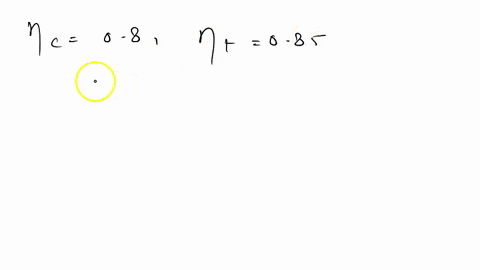

A gas refrigeration system using air as the working fluid has a pressure ratio of 5. Air enters the compressor at 0°C. The high-pressure air is cooled to 35°C by rejecting heat to the surroundings. The refrigerant leaves the turbine at -80°C and enters the refrigerated space where it absorbs heat before entering the regenerator. The mass flow rate of air is 0.4 kg/s. Assuming isentropic efficiencies of 80 percent for the compressor and 85 percent for the turbine and using variable specific heats, determine(a) The effectiveness of the regenerator,(b) The rate of heat removal from the refrigerated space, and(c) The COP of the cycle. Also, determine(d) The refrigeration load and the COP if this system operated on the simple gas refrigeration cycle. Use the same compressor inlet temperature as given, the same turbine inlet temperature as calculated, and the same compressor and turbine efficiencies.
