4.2 Write the state equations in vector matrix of the control system with the prespecified state variables in the Fig Q.4.2
Added by Kyle C.
Close
Step 1
Step 1: The state equations are: $$\dot{x_1} = -2x_1 + 4x_2$$ $$\dot{x_2} = -5x_2 + 2x_3$$ $$\dot{x_3} = -x_3 + 3r(t)$$ Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

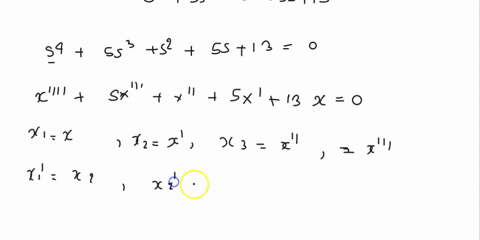

1) Represent the following transfer function in state space in vector-matrix form. R(s) 8s + 10 C(s) s^4 + 5s^3 + s^2 + 5s + 13 2) Find the transfer function of the given state space representation shown below [2 3] [8 0] [5 3] [5 6] y = 13/6 * x
Adi S.
Madhur L.

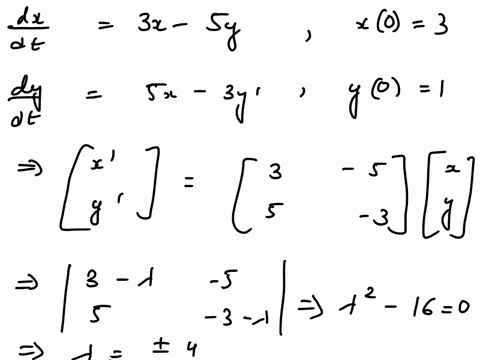

Write the given linear system without the use of matrices. $$\frac{d}{d t}\left(\begin{array}{l} x \\y\end{array}\right)=\left(\begin{array}{rr}3 & -7 \\1 & 1\end{array}\right)\left(\begin{array}{l}x \\y\end{array}\right)+\left(\begin{array}{l}4 \\8\end{array}\right) \sin t+\left(\begin{array}{c}t-4 \\2 t+1\end{array}\right) e^{4 t}$$
Systems of Linear First-Order Differential Equations
Preliminary Theory—Linear Systems
