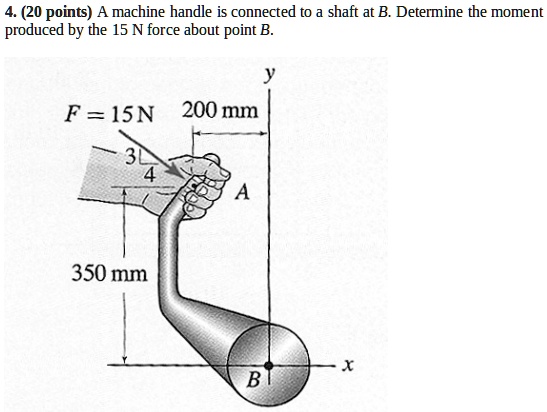

4. (20 points) A machine handle is connected to a shaft at B. Determine the moment produced by the 15 N force about point B. F = 15 N 200 mm y 3 4 A 350 mm x B
Added by Laura E.
Close
Step 1
We have a machine handle with a 15 N force applied at point A. The force is directed at an angle of -3π/4 radians (or -135°) from the horizontal. Point A is located 200 mm to the right and 350 mm above point B (the shaft connection). Show more…
Show all steps
Your feedback will help us improve your experience
Vivek K and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

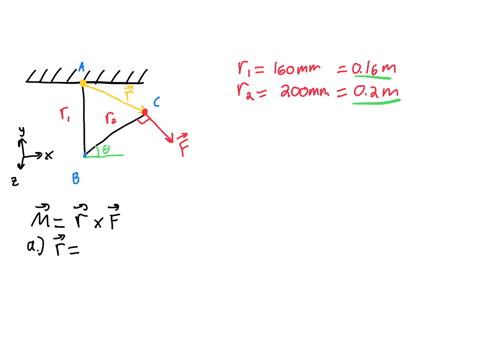

Find the moment of the 500 N force shown about (a) Point A and (b) Point B.
Gregory D.
3-13. The 20-N horizontal force acts on the handle of the socket wrench. What is the moment of this force about point B? Specify the coordinate direction angles α, β, γ of the moment axis. 3-14. The 20-N horizontal force acts on the handle of the socket wrench. Determine the moment of this force about point O. Specify the coordinate direction angles α, β, γ of the moment axis.
Sri K.
The 20 -N horizontal force acts on the handle of the socket wrench. What is the moment of this force about point $B$ Specify the coordinate direction angles $\alpha, \beta, \gamma$ of the moment axis
