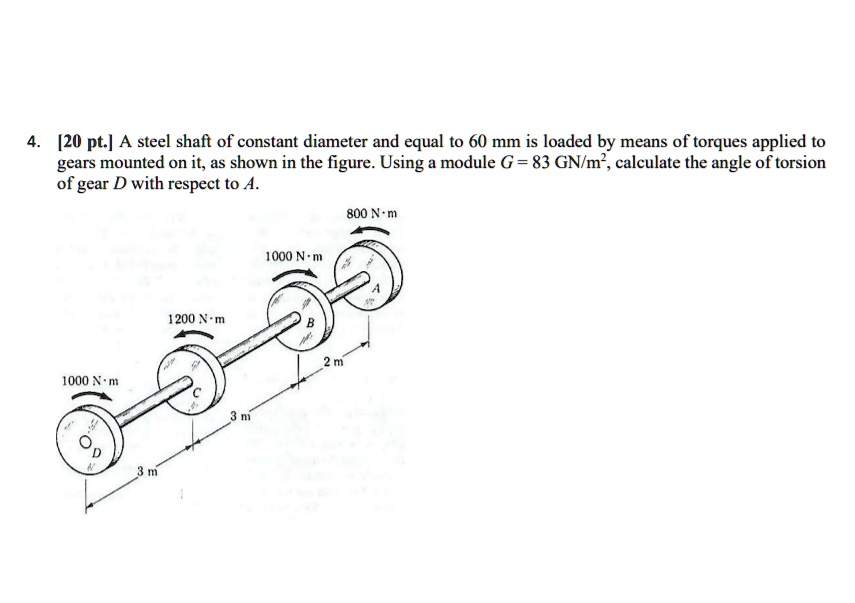

A steel shaft of constant diameter and equal to 60 mm is loaded by means of torques applied to gears mounted on it, as shown in the figure. Using a module G = 83 GN/m², calculate the angle of torsion of gear D with respect to A.
Added by Amy N.
Close
Step 1
The polar moment of inertia is a measure of an object's ability to resist torsion and is given by the formula: J = (pi/32) * d^4 where d is the diameter of the shaft. Given that the diameter of the shaft is 60 mm, we can convert it to meters by dividing by Show more…
Show all steps
Your feedback will help us improve your experience
Tavis Lam and 96 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

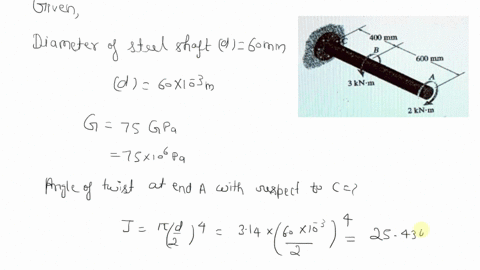

The 60-mm-diameter steel shaft is subjected to the torques shown. Determine the angle of twist of end A with respect to C. Take G = 75 GPa. 400 mm 600 mm 3 kN·m 2 kN·m
Ravindra Y.
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown where T=260 Nâ‹…m. The shaft has a diameter of 30 mm. Determine the angle of twist of end B with respect to end A.
Sri K.
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 80 GPa and the shaft has a diameter of 14 mm, determine the displacement of the tooth P on gear A. The shaft turns freely within the bearing at B. The shaft is subjected to 2 torques. Find the reactions at the fixed supports A and B. Assumption: Bearing reactions on the shaft are zero, provided the shaft's weight is neglected.
