4.26. The homogeneous bar AB weighs 30lb. Determine the magnitudes of the forces acting on the bar at A and B. Neglect friction.
Added by Sophia G.
Step 1
The problem states that a homogeneous bar AB weighs 30 lb and is supported at points A and B. We need to determine the forces acting at these points. Since the bar is homogeneous, its weight is evenly distributed along its length. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Sheryl Ezze and 56 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

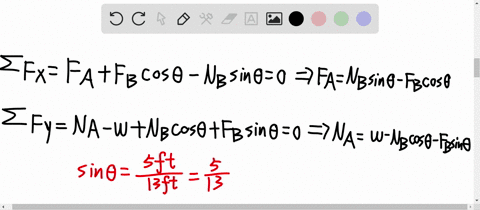

Determine the smallest coefficient of static friction at both $A$ and $B$ needed to hold the uniform 100 -lb bar in equilibrium. Neglect the thickness of the bar. Take $\mu_{A}=\mu_{B}=\mu$

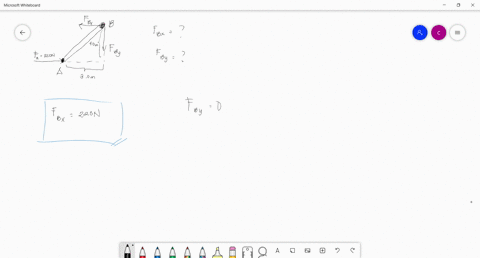

End A of the bar AB in $\textbf{Fig. P11.50}$ rests on a frictionless horizontal surface, and end $B$ is hinged. A horizontal force $\overrightarrow{F}$ of magnitude 220 N is exerted on end $A$. Ignore the weight of the bar. What are the horizontal and vertical components of the force exerted by the bar on the hinge at $B$? Figure E11.50 (CAN'T COPY THE FIGURE)
Equilibrium and Elasticity
Elasticity and Plasticity
End A of the bar AB in $\textbf{Fig. P11.50}$ rests on a frictionless horizontal surface, and end $B$ is hinged. A horizontal force $\overrightarrow{F}$ of magnitude 220 N is exerted on end $A$. Ignore the weight of the bar. What are the horizontal and vertical components of the force exerted by the bar on the hinge at $B$?
Cyra Jelle C.
