4.48 a) Use the mesh-current method to determine which sources in the circuit in Fig. P4.48 are gen- erating power. b) Find the total power dissipated in the circuit. Figure P4.48 2Ω 5Ω $v_{\Delta}$ $i_{\Delta}$ 4 Ω 20 Ω 1.7 $v_{\Delta}$ 50 V 9 $i_{\Delta}$
Added by Natalie C.
Close
Step 1
Mesh 1: $I_1$ flows through the 50V source, 2Ω resistor, and 4Ω resistor. Mesh 2: $I_2$ flows through the 4Ω resistor, 9$i_{\Delta}$ source, and 20Ω resistor. Mesh 3: $I_3$ flows through the 20Ω resistor and the 1.7$v_{\Delta}$ source. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 75 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Problem 4.7 a) Use source transformations to find Vo in the circuit in Fig P4.7. b) Find the power developed by the 520 V source. c) Find the power developed by the 1 A current source. d) Verify that the total power developed equals the total power dissipated. 520 V 16 Ω 42 Ω 260 Ω I1 4Ω I2 250 Ω 6 Ω Fig: P4.7
Adi S.

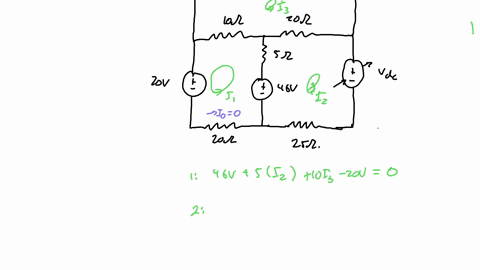

4.58 The variable dc voltage source in the circuit in Fig. P4.58 is adjusted so that io is zero. a) Would you use the node-voltage or mesh-current method to find vdc? Explain your choice. b) Find the value of vdc, using the method selected in (a). c) Check your solution by showing the power developed equals the power dissipated.
Sam S.
P 4.8-2 Determine the power supplied by the dependent source in the circuit shown in Figure P 4.8-2 by writing and solving (a) node equations and (b) mesh equations. i_a = 0.2 v_a v_a 50 Ω 10 Ω 120 V
