46. N Figure P29.46 shows a circuit with a 12.0-V battery connected to four resistors. How much power is delivered to each resistor? 1.00 ? + 12.0 V 4.00 ? 5.00 ? 2.00 ? FIGURE P29.46
Added by Carol R.
Close
Step 1
We can use Ohm's Law to do this. Ohm's Law states that the current (I) flowing through a resistor is equal to the voltage (V) across the resistor divided by the resistance (R) of the resistor. In this case, we have a 12.0 V battery connected to four resistors. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 99 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

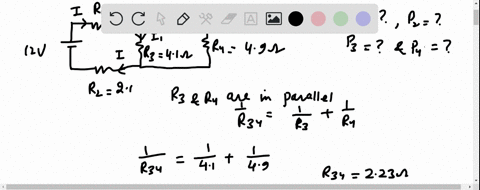

The figure below shows a circuit with a 12.0-V battery connected to four resistors. How much power is delivered to each resistor? (Consider the following values: R1 = 1.20 Ω, R2 = 2.10 Ω, R3 = 4.10 Ω, R4 = 4.90 Ω.) Find P1 = P2 = P3 = P4 =
Khoobchandra A.
Four resistors are connected in a circuit with a 110 -V source, as shown in $v$ Fig. 18.41 . (a) What is the current in each resistor? (b) How much power is delivered to each resistor?
Four resistors R1=8.00 Ω, R2=6.00 Ω, R3=11.0 Ω, and R4=6.00 Ω are mounted as shown in the figure. The voltage of the battery is V = 20.0 Volts. What is the power dissipated in the R2 resistor? Watts
