4. Average and rms values Several periods of periodic voltage v(t) are shown in the figure. Find the average value $V_{avg}$ and the rms value $V_{rms}$ of the waveform. Answers in the spaces provided. $V_{avg} = $ $V_{rms} = $
Added by Beth G.
Close
Step 1
To find the average value V, we need to calculate the average of the voltage waveform over one period. The average value is given by the formula: V = (1/T) * ∫[0 to T] v(t) dt where T is the period of the waveform. Show more…
Show all steps
Your feedback will help us improve your experience
Kajal Raghubanshi and 56 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Calculate the rms value of the periodic current waveform shown in Fig. P9.57.

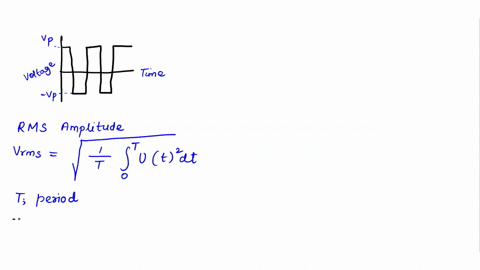

The rms amplitude is defined as the square root of the average of the square of the signal. For a periodic wave function, the time average is the integral over one period, divided by the period. For a sinusoidal voltage given by V = Vp sin ωt, it can be shown that Vrms = Vp / √2. How are the rms and peak voltages related for the square wave shown in Fig. 33-28? Vrms = X Vp Figure 33-28.
Sri K.
Find the rms value of the voltage waveform shown in Figure P5.16.
