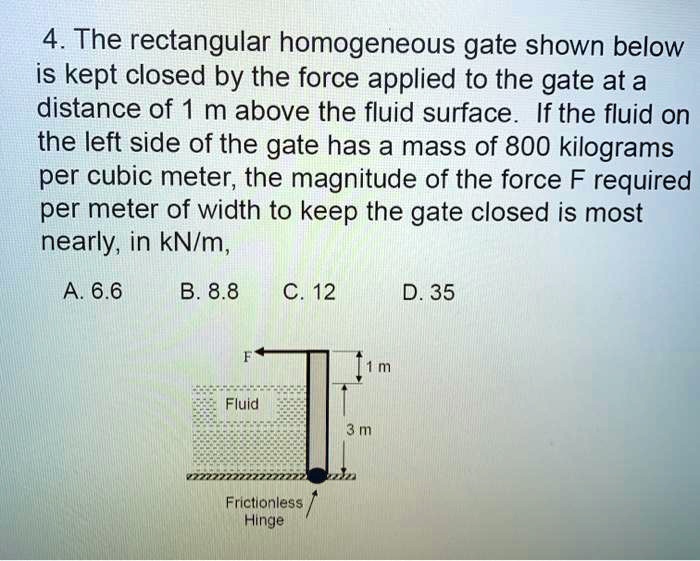

4. The rectangular homogeneous gate shown below is kept closed by the force applied to the gate at a distance of 1 m above the fluid surface. If the fluid on the left side of the gate has a mass of 800 kilograms per cubic meter, the magnitude of the force F required per meter of width to keep the gate closed is most nearly, in kN/m, A. 6.6 B. 8.8 C. 12 D. 35
Added by Alex C.
Close
Step 1
First, let's calculate the weight of the fluid on the left side of the gate. The weight of an object is given by the formula weight = mass x gravity, where gravity is approximately 9.8 m/s^2. Weight of fluid = mass of fluid x gravity = 800 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 96 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

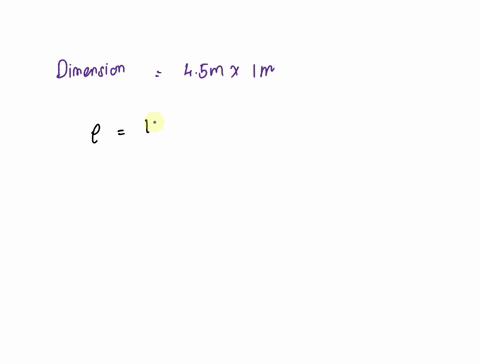

Fluid Density: 1500 kg/m^3 Gate Dimensions: 4.5m x 1m FLUID FRICTIONLESS HINGE The rectangular homogeneous gate shown above. Using the listed data, determine the magnitude of the force "F" required to keep the gate closed.
Supreeta N.

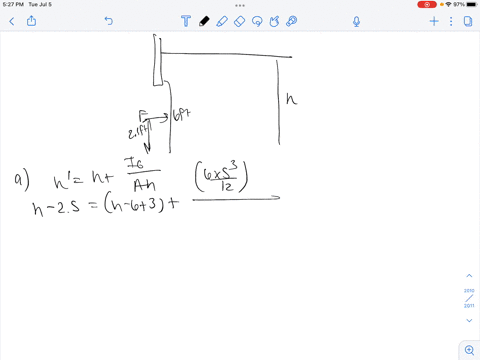

A rectangular gate 6 ft tall and 5 ft wide in the side of an open tank is held in place by the force $F$ as indicated in Fig. $P .2 .88$ The weight of the gate is negligible, and the hinge at $\mathrm{O}$ is frictionless. (a) Determine the water depth, $h,$ if the resultant hydrostatic force of the water acts $2.5 \mathrm{ft}$ above the bottom of the gate, i.e., it is collinear with the applied force $F$. (b) For the depth of part (a), determine the magnitude of the resultant hydrostatic force. (c) Determine the force that the hinge puts on the gate under the above conditions.
Penny R.

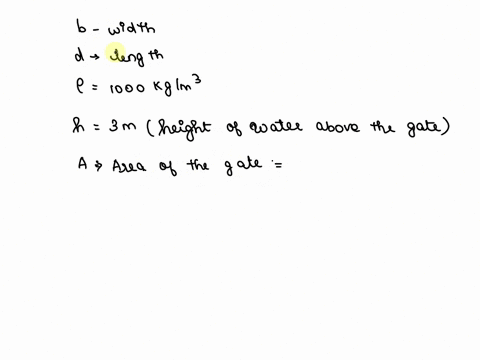

A water gate with a rectangular shape, as shown in the figure below. Calculate the required force P to maintain the gate in a closed condition. Given Ixc = bd^3/12, where b and d are the width and length respectively, and the density of water is 1000 kg/m^3. Water 3m Hinged Gate 4m
Madhur L.
