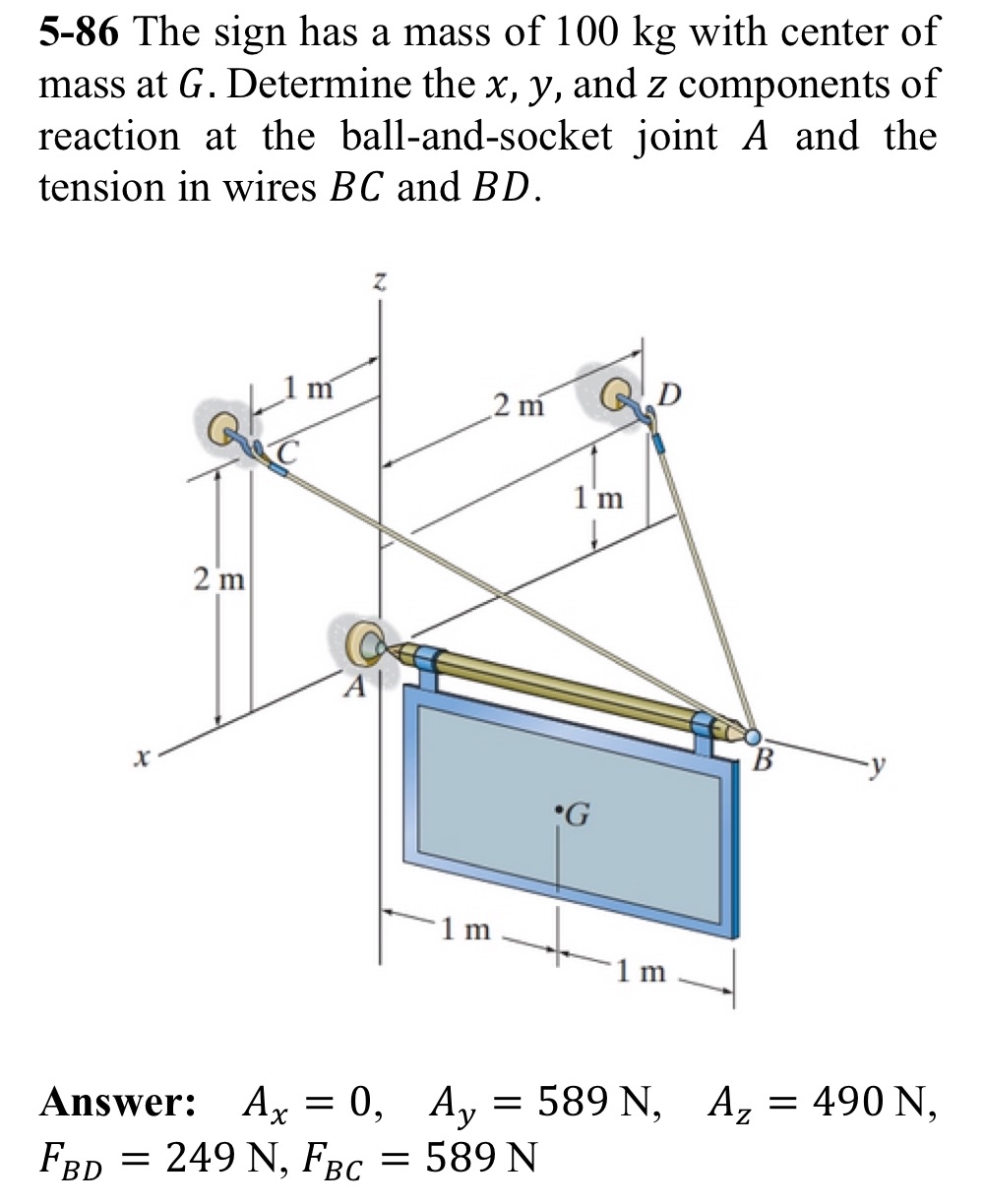

5-86 The sign has a mass of 100 kg with center of mass at \( G \). Determine the \( x, y \), and \( z \) components of reaction at the ball-and-socket joint \( A \) and the tension in wires \( B C \) and \( B D \). Answer: \( A_{x}=0, A_{y}=589 \mathrm{~N}, A_{z}=490 \mathrm{~N} \), \( F_{B D}=249 \mathrm{~N}, F_{B C}=589 \mathrm{~N} \)

          5-86 The sign has a mass of 100 kg with center of mass at \( G \). Determine the \( x, y \), and \( z \) components of reaction at the ball-and-socket joint \( A \) and the tension in wires \( B C \) and \( B D \).

Answer: \( A_{x}=0, A_{y}=589 \mathrm{~N}, A_{z}=490 \mathrm{~N} \), \( F_{B D}=249 \mathrm{~N}, F_{B C}=589 \mathrm{~N} \)

5-86 The sign has a mass of 100 kg with center of mass at G. Determine the x, y, and z components of reaction at the ball-and-socket joint A and the tension in wires B C and B D.

Answer: Ax=0, Ay=589 N, Az=490 N, FB D=249 N, FB C=589 N

Added by Lisa B.

Engineering Mechanics: Statics and Dynamics

R. C. Hibbeler 14th Edition

Chapter 5

Thanks for your feedback!

5-86 The sign has a mass of 100 kg with center of mass at \( G \). Determine the \( x, y \), and \( z \) components of reaction at the ball-and-socket joint \( A \) and the tension in wires \( B C \) and \( B D \). Answer: \( A_{x}=0, A_{y}=589 \mathrm{~N}, A_{z}=490 \mathrm{~N} \), \( F_{B D}=249 \mathrm{~N}, F_{B C}=589 \mathrm{~N} \)
