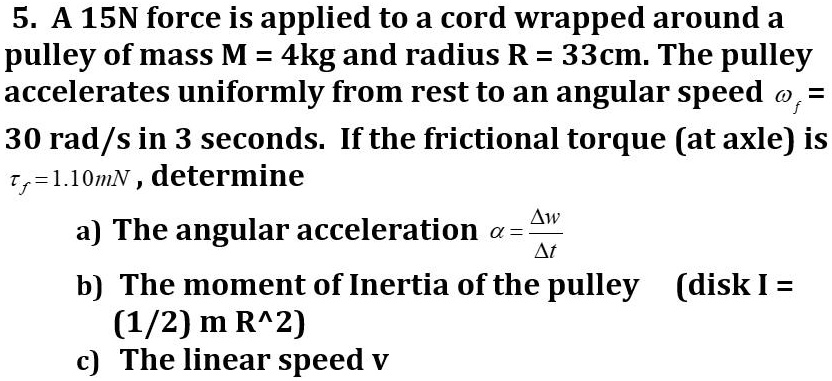

5. A 15N force is applied to a cord wrapped around a pulley of mass M = 4kg and radius R = 33cm. The pulley accelerates uniformly from rest to an angular speed $omega_f$ = 30 rad/s in 3 seconds. If the frictional torque (at axle) is $ au_f$=1.10mN, determine a) The angular acceleration $alpha = frac{Delta omega}{Delta t}$ b) The moment of Inertia of the pulley (disk I = (1/2) m R^2) c) The linear speed v
Added by Mitchell R.
Close
Step 1
We know the initial angular speed (wi) is 0 rad/s, the final angular speed (wf) is 30 rad/s, and the time (t) is 3 seconds. We can use the formula: wf = wi + alpha * t Rearranging for alpha, we get: alpha = (wf - wi) / t alpha = (30 - 0) / 3 alpha = 10 Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 83 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A block of mass m=10 kg starts from rest and moves down. The block is attached to a solid disk pulley of mass M and radius R = 0.3 m, which experiences angular acceleration 25 rad/s2. Find: (a) the magnitude of force of tension in the rope (in N); Find: (b) the magnitude of torque applied to the pulley (in Nm); c) Neglecting the change of R, find the mass M of the pulley (in kg).
Adi S.

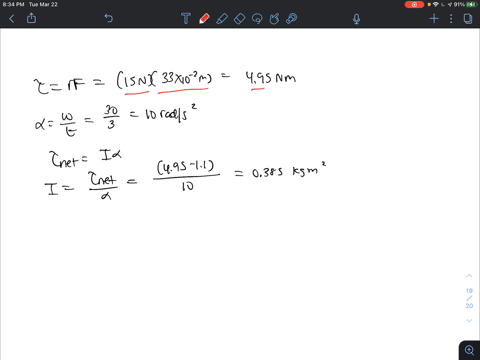

A force of 15.0 N is applied to a wire wrapped around a pulley of mass M = 4.00 kg and radius R = 33.0 cm. The pulley rotates around the axis of symmetry that passes through its center and accelerates uniformly from rest to an angular speed of 30.0 rad / s in 3.00 s. There is a torque, Ta = 1.10 Nm, due to friction on the shaft. Determine the pulley's moment of inertia.
Penny R.
7) In the figure, block 1 has mass m1 = 460 g, block 2 has mass m2 = 500 g, and the pulley, which is mounted on a horizontal axle with negligible friction, has radius R = 5.00 cm. When released from rest, block 2 falls 75.0 cm in 5.00 s without the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension T2 and (c) tension T1? (d) What is the magnitude of the pulley's angular acceleration? (e) What is its rotational inertia?
Sri K.
