\( 5 \angle+81.87^{\circ}\left(4-j 3+\frac{3 \sqrt{2} \angle-45^{\circ}}{7-j 1}\right) \)
Added by Johnny R.
Close
Your feedback will help us improve your experience
Ankit Gupta and 82 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the angle between $\mathrm{v}$ and $\mathrm{w}$. Round to the nearest tenth of a degree. $$ \mathbf{v}=3 \mathbf{j}, \quad \mathbf{w}=4 \mathbf{i}+5 \mathbf{j} $$
Additional Topics in Trigonometry
The Dot Product
Express the roots of $(-14+j 3)^{\frac{-2}{5}}$ in polar form. $$ \begin{aligned} (-14+j 3)=& \sqrt{205} \angle 167.905^{\circ} \\ (-14+j 3)^{\frac{-2}{5}}=\sqrt{205^{\frac{-2}{5}}} \angle\left[\left(-\frac{2}{5}\right) \times 167.905^{\circ}\right] \\ =& 0.3449 \angle-67.164^{\circ} \\ & \text { or } 0.3449 \angle-67^{\circ} 10^{\prime} \end{aligned} $$ There are five roots to this complex number, $$ \left(x^{\frac{-2}{5}}=\frac{1}{x^{\frac{2}{5}}}=\frac{1}{\sqrt[5]{x^{2}}}\right) $$ The roots are symmetrically displaced from one another $(360 / 5)^{\circ}$, i.e. $72^{\circ}$ apart round an Argand diagram. Thus the required roots are $0.3449 \angle-67^{\circ} 10^{\prime}$, $0.3449 \angle 4^{\circ} 50^{\prime}, \quad 0.3449 \angle 76^{\circ} 50^{\prime}, \quad 0.3449 \angle 148^{\circ} 50^{\prime}$ and $0.3449 \angle 220^{\circ} 50^{\prime}$

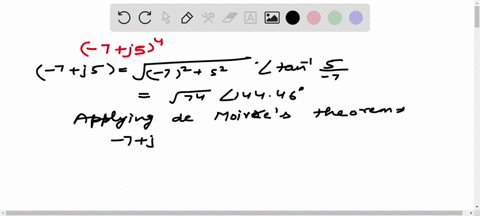

Determine the value of $(-7+j 5)^{4}$ expressing the result in polar and rectangular forms. $$ \begin{aligned} (-7+j 5) &=\sqrt{\left[(-7)^{2}+5^{2}\right]} \angle \tan ^{-1} \frac{5}{-7} \\ &=\sqrt{74} \angle 144.46^{\circ} \end{aligned} $$ (Note, by considering the Argand diagram, $-7+j 5$ must represent an angle in the second quadrant and not in the fourth quadrant.) Applying de Moivre's theorem: $$ \begin{aligned} (-7+j 5)^{4} &=\left[\sqrt{74} \angle 144.46^{\circ}\right]^{4} \\ &=\sqrt{74^{4}} \angle 4 \times 144.46^{\circ} \\ &=5476 \angle 577.84^{\circ} \\ &=5476 \angle 217.84^{\circ} \end{aligned} $$ or $5476 \angle 217^{\circ} 50^{\prime}$ in polar form Since $r \angle \theta=r \cos \theta+j r \sin \theta$ $$ \begin{aligned} 5476 \angle 217.84^{\circ}=5476 \cos 217.84^{\circ} \\ &+j 5476 \sin 217.84^{\circ} \\=&-4325-j 3359 \end{aligned} $$ e. $\quad(-7+j 5)^{4}=-4325-j 3359$ in rectangular form
