5) Determine (i) the output DC voltage, Vdc, and (ii) current through RL for the rectifier circuit below (Figure 2) (25 m) 170 Vac 60 Hz 0.5 ? 15 mH 124 ?H (1 turn coil) Vd = 0.76 V 1N4148 RL 1 k? Vdc Figure 2 6) Sketch the common-base BJT transistor configuration and describe its input/output terminals and input/output signals. (5 m)

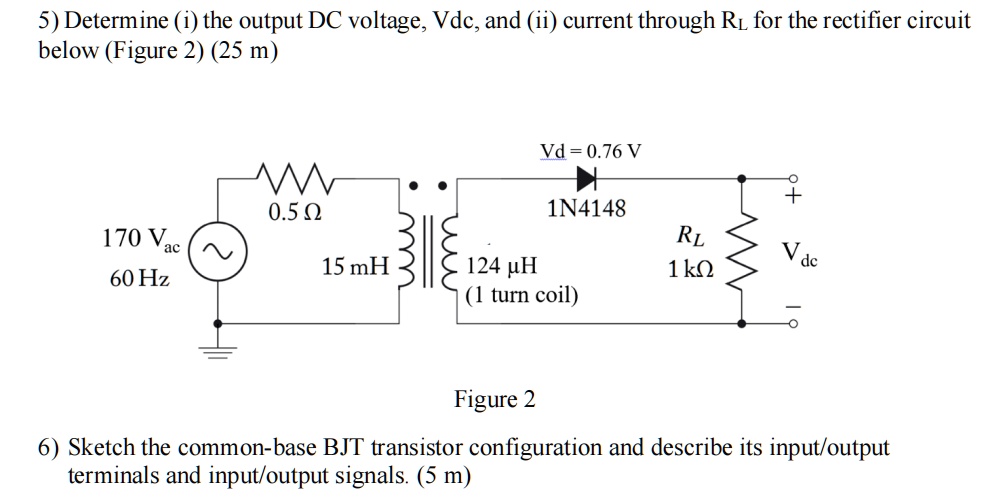

          5) Determine (i) the output DC voltage, Vdc, and (ii) current through RL for the rectifier circuit below (Figure 2) (25 m)

170 Vac
60 Hz
0.5 ?
15 mH
124 ?H (1 turn coil)
Vd = 0.76 V
1N4148
RL 1 k?
Vdc

Figure 2

6) Sketch the common-base BJT transistor configuration and describe its input/output terminals and input/output signals. (5 m)
