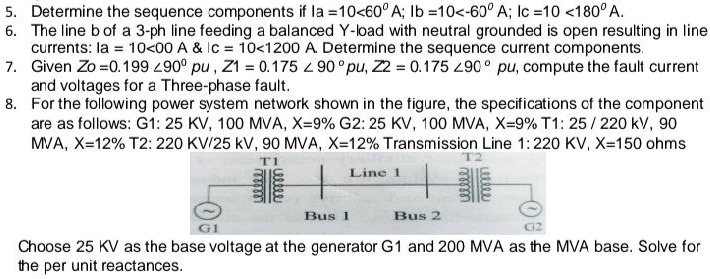

5. Determine the sequence components if $I_a = 10\angle60^\circ A$; $I_b = 10\angle-60^\circ A$; $I_c = 10\angle180^\circ A$. 6. The line b of a 3-ph line feeding a balanced Y-load with neutral grounded is open resulting in line currents: $I_a = 10\angle0^\circ A$ & $I_c = 10\angle120^\circ A$. Determine the sequence current components. 7. Given $Z_0 = 0.199\angle90^\circ pu$, $Z_1 = 0.175\angle90^\circ pu$, $Z_2 = 0.175\angle90^\circ pu$, compute the fault current and voltages for a Three-phase fault. 8. For the following power system network shown in the figure, the specifications of the component are as follows: G1: 25 KV, 100 MVA, X=9% G2: 25 KV, 100 MVA, X=9% T1: 25/220 kV, 90 MVA, X=12% T2: 220 KV/25 kV, 90 MVA, X=12% Transmission Line 1: 220 KV, X=150 ohms Choose 25 KV as the base voltage at the generator G1 and 200 MVA as the MVA base. Solve for the per unit reactances.

          5. Determine the sequence components if $I_a = 10\angle60^\circ A$; $I_b = 10\angle-60^\circ A$; $I_c = 10\angle180^\circ A$.
6. The line b of a 3-ph line feeding a balanced Y-load with neutral grounded is open resulting in line currents: $I_a = 10\angle0^\circ A$ & $I_c = 10\angle120^\circ A$. Determine the sequence current components.
7. Given $Z_0 = 0.199\angle90^\circ pu$, $Z_1 = 0.175\angle90^\circ pu$, $Z_2 = 0.175\angle90^\circ pu$, compute the fault current and voltages for a Three-phase fault.
8. For the following power system network shown in the figure, the specifications of the component are as follows: G1: 25 KV, 100 MVA, X=9% G2: 25 KV, 100 MVA, X=9% T1: 25/220 kV, 90 MVA, X=12% T2: 220 KV/25 kV, 90 MVA, X=12% Transmission Line 1: 220 KV, X=150 ohms
Choose 25 KV as the base voltage at the generator G1 and 200 MVA as the MVA base. Solve for the per unit reactances.
