Question

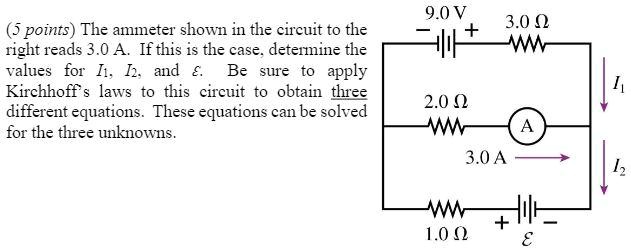

The ammeter shown in the circuit to the right reads 3.0 A. If this is the case, determine the values for I1, I2, and ?. Be sure to apply Kirchhoff's laws to this circuit to obtain three different equations. These equations can be solved for the three unknowns.

Name: The ammeter shown in the circuit to the right reads 3.0 A. If this is the case, determine the values for I1, I2, and ?. Be sure to apply Kirchhoff's laws to this circuit to obtain three different equations. These equations can be solved for the three unknowns.
Uploaded: 2022-06-06T06:50:09-08:00
Duration: 1 min 56 s
Channel: Madhur L
Description: The ammeter shown in the circuit to the right reads 3.0 A. If this is the case, determine the values for I1, I2, and ?. Be sure to apply Kirchhoff's laws to this circuit to obtain three different equations. These equations can be solved for the three unknowns.

          The ammeter shown in the circuit to the right reads 3.0 A. If this is the case, determine the values for I1, I2, and ?. Be sure to apply Kirchhoff's laws to this circuit to obtain three different equations. These equations can be solved for the three unknowns.

The ammeter shown in the circuit to the right reads 3.0 A. If this is the case, determine the values for I1, I2, and ?. Be sure to apply Kirchhoff's laws to this circuit to obtain three different equations. These equations can be solved for the three unknowns.

Added by Jaime R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

06/06/2022

Step 1

Step 1:** Apply Kirchhoff's current law at the junction point: $I = I_1 + I_2$ ** Show more…
