          5 Template Matching (20 points)
26 3 184 75 80 128 72 0 84
89 65 0 200 224 18 170 26 54
47 75 127 52 94 26 68 43 199
81 87 86 0 97 3 9 208 218
23 12 188 176 180 1 2 6 3
0 80 54 39 31 22 40 9 2
5 21 9 12 98 176 211 105 9
3 10 20
18 1 5
2 30 3

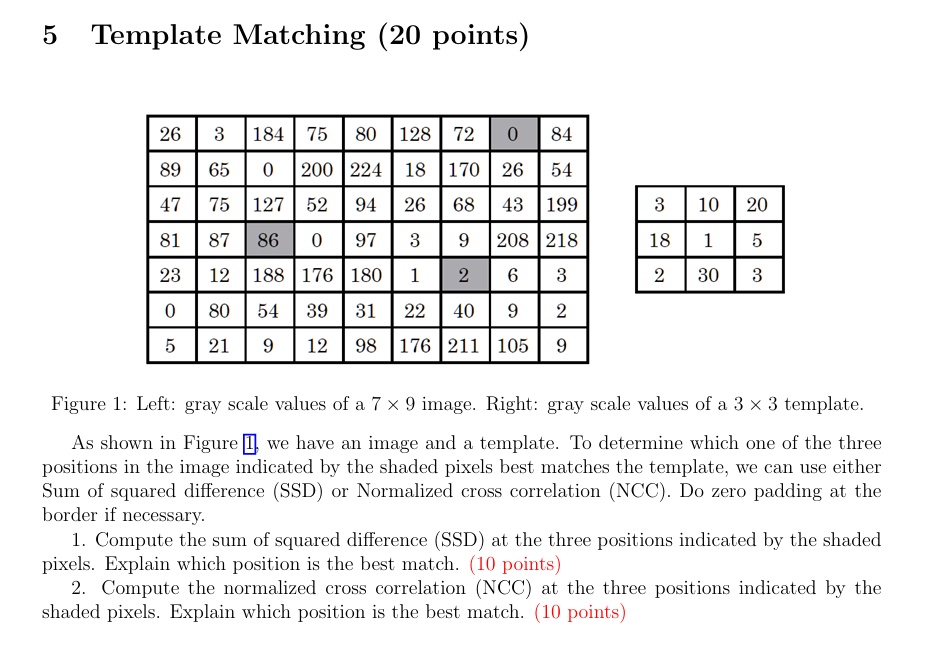

Figure 1: Left: gray scale values of a 7 × 9 image. Right: gray scale values of a 3 × 3 template.
As shown in Figure 1, we have an image and a template. To determine which one of the three positions in the image indicated by the shaded pixels best matches the template, we can use either Sum of squared difference (SSD) or Normalized cross correlation (NCC). Do zero padding at the border if necessary.
1. Compute the sum of squared difference (SSD) at the three positions indicated by the shaded pixels. Explain which position is the best match. (10 points)
2. Compute the normalized cross correlation (NCC) at the three positions indicated by the shaded pixels. Explain which position is the best match. (10 points)
