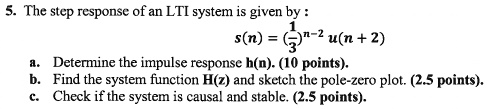

5. The step response of an LTI system is given by : s(n) = (1/3)^{n-2} u(n + 2) a. Determine the impulse response h(n). (10 points). b. Find the system function H(z) and sketch the pole-zero plot. (2.5 points). c. Check if the system is causal and stable. (2.5 points).
Added by Natasha V.
Close
Step 1
Step 1: Identify the given step response of the LTI system: s(n) = (1/3)^(n-2) u(n+2). Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 91 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Given a LTI system with the following input signal x(t), The impulse response of the system is defined as, h(t) = 2u(t - 2). (a) Find the expression of x(t). (b) Sketch the impulse response h(t). (c) Find the output of the system y(t) = x(t) * h(t). (Show all the necessary intermediate steps.) B. Consider an input x[n] and a unit impulse response h[n] given by x[n] = (1/3)^{n-2} u[n - 2], h[n] = u[n + 2]. (a) Sketch the signal x[n] and the impulse response h[n]. (b) Determine the output y[n] = x[n] * h[n]. (Show all the necessary intermediate steps.)
Sri K.
The Laplace transform of the impulse response of an LTI system is given as H(s) = 1/(s + 2), Re{s} > -2. (a) Plot the pole-zero pattern for H(s). (b) Determine the L[x(t)] for the input signal x(t) = e^(-5t)u(t) using the definition of Laplace transform. Sketch the pole-zero plots and indicate the ROC on the sketch. (c) Calculate the output y(t) for the above LTI system with the input signal given in Q5(b).
