5.1 Frequency sensitive loads. The total load connected to a power system is found to increase by D% due to a 1% increase in the frequency. For a particular operating condition the system load at the nominal system frequency, f0, is PL(f0) = PL0. (a) Derive the following equation for the system load, PL(f), as a function system frequency f = f0 + ?f. PL(f) = PL0(1 + D(?f/f0)) (1) (b) Sketch a graph of the relationship you derived in (a) assuming that D > 0. (c) The system is initially operating with a load of PL10 at nominal frequency f0. As above, the load increases by D% due to a 1% increase in frequency. An additional load is then connected to the system which consumes ?PL0 at the nominal frequency. Thus, the final load at the nominal frequency is PL20 = PL10 + ?PL0. Assume that the frequency sensitivity of the initial and final values of the load are the same. Show that: PL2(f) = PL1(f) + ?PL0 (2) (d) Sketch a graph showing PL1(f) and PL2(f). (e) For a particular system the load increases by 2% due to a 1% increase in frequency. The initial system load is 2000 MW at the nominal frequency of 50 Hz. An additional load of 50 MW (as measured at 50Hz) is connected to the system. The connection of this load causes a decrease in frequency of 0.2 Hz. What is the total system load taking into account the decrease in system frequency?

          5.1 Frequency sensitive loads. The total load connected to a power system is found to increase by D% due to a 1% increase in the frequency. For a particular operating condition the system load at the nominal system frequency, f0, is PL(f0) = PL0. (a) Derive the following equation for the system load, PL(f), as a function system frequency f = f0 + ?f. PL(f) = PL0(1 + D(?f/f0)) (1) (b) Sketch a graph of the relationship you derived in (a) assuming that D > 0. (c) The system is initially operating with a load of PL10 at nominal frequency f0. As above, the load increases by D% due to a 1% increase in frequency. An additional load is then connected to the system which consumes ?PL0 at the nominal frequency. Thus, the final load at the nominal frequency is PL20 = PL10 + ?PL0. Assume that the frequency sensitivity of the initial and final values of the load are the same. Show that: PL2(f) = PL1(f) + ?PL0 (2) (d) Sketch a graph showing PL1(f) and PL2(f). (e) For a particular system the load increases by 2% due to a 1% increase in frequency. The initial system load is 2000 MW at the nominal frequency of 50 Hz. An additional load of 50 MW (as measured at 50Hz) is connected to the system. The connection of this load causes a decrease in frequency of 0.2 Hz. What is the total system load taking into account the decrease in system frequency?

Show more…
5.1 Frequency sensitive loads. The total load connected to a power system is found to increase by D% due to a 1% increase in the frequency. For a particular operating condition the system load at the nominal system frequency, f0, is PL(f0) = PL0. (a) Derive the following equation for the system load, PL(f), as a function system frequency f = f0 + ?f. PL(f) = PL0(1 + D(?f/f0)) (1) (b) Sketch a graph of the relationship you derived in (a) assuming that D > 0. (c) The system is initially operating with a load of PL10 at nominal frequency f0. As above, the load increases by D% due to a 1% increase in frequency. An additional load is then connected to the system which consumes ?PL0 at the nominal frequency. Thus, the final load at the nominal frequency is PL20 = PL10 + ?PL0. Assume that the frequency sensitivity of the initial and final values of the load are the same. Show that: PL2(f) = PL1(f) + ?PL0 (2) (d) Sketch a graph showing PL1(f) and PL2(f). (e) For a particular system the load increases by 2% due to a 1% increase in frequency. The initial system load is 2000 MW at the nominal frequency of 50 Hz. An additional load of 50 MW (as measured at 50Hz) is connected to the system. The connection of this load causes a decrease in frequency of 0.2 Hz. What is the total system load taking into account the decrease in system frequency?

Added by Justin W.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
5.1 Frequency sensitive loads. The total load connected to a power system is found to increase by D% due to a 1% increase in the frequency. For a particular operating condition the system load at the nominal system frequency, f0, is PL(f0) = PL0. (a) Derive the following equation for the system load, PL(f), as a function system frequency f = f0 + Δf. PL(f) = PL0(1 + D(Δf/f0)) (1) (b) Sketch a graph of the relationship you derived in (a) assuming that D > 0. (c) The system is initially operating with a load of PL10 at nominal frequency f0. As above, the load increases by D% due to a 1% increase in frequency. An additional load is then connected to the system which consumes ΔPL0 at the nominal frequency. Thus, the final load at the nominal frequency is PL20 = PL10 + ΔPL0. Assume that the frequency sensitivity of the initial and final values of the load are the same. Show that: PL2(f) = PL1(f) + ΔPL0 (2) (d) Sketch a graph showing PL1(f) and PL2(f). (e) For a particular system the load increases by 2% due to a 1% increase in frequency. The initial system load is 2000 MW at the nominal frequency of 50 Hz. An additional load of 50 MW (as measured at 50Hz) is connected to the system. The connection of this load causes a decrease in frequency of 0.2 Hz. What is the total system load taking into account the decrease in system frequency?
Close icon
Play audio
Feedback
Powered by NumerAI
Danielle Fairburn Jennifer Stoner
Ivan Kochetkov verified

Sri K and 96 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
2-a-60-hz-interconnected-power-system-has-two-areas-denoted-area-1-and-area-2-where-the-area-frequency-response-characteristics-are-given-by-i400-mwhz-and-2300-mwhz-the-total-power-generatio-36396

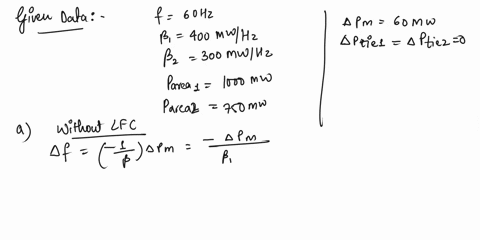

A 60-Hz interconnected power system has two areas denoted area 1 and area 2, where the area frequency response characteristics are given by ̠₁=400 MW/Hz and ̠₂=300 MW/Hz. The total power generation capacity in each of these areas is 1000 MW and 750 MW, respectively. Each area is initially generating power at 70% of generation capacity at 60 Hz in steady state with Ptie1=Ptie2=0. When the load in area 1 suddenly increases by 60 MW, find the resulting steady-state change in frequency Δf as well as the steady-state changes in tie-line power flows ΔPtie12 in the cases (a) without LFC, and (b) with LFC. Neglect all losses and the dependence of load on frequency.

Sri K.

ref-april2004-17it-is-required-to-increase-the-power-factor-of-a-750-kw-three-phase-balanced-load-from-70-lagging-to-90-the-line-voltage-is-6900-volts60-hz-specify-the-capacitor-required-to-98321

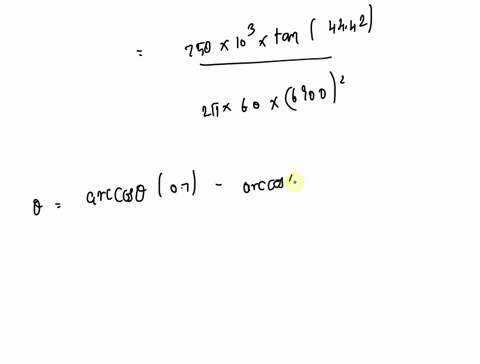

REE - April 2004 17. It is required to increase the power factor of a 750 kW three-phase balanced load from 70 % lagging to 90 %. The line voltage is 6, 900 Volts, 60 Hz. Specify the capacitor required to increase the power factor of this wye-connected load in microfarad per phase. A. 20.45 B. 22.39 C. 18.58 D. 17.22 REE - September 2007 18. Find the average power absorbed by a balanced three-phase load in an ACB circuit in which one line voltage is Vac = 480∠30° V and one line current to the load is Ib = 2.1∠80° A. A. 1, 337 W B. 1, 122 W C. 1, 719 W D. 1, 121 W REE - September 2001 19. The phase B line voltage and the phase A line current of a balanced three phase systems are V = 220sin(wt + 180°)A, respectively. What is the power of the system? A. 1, 905 W B. 3, 300 W C. 5, 716 W D. 3, 810 W REE - May 2010 20. A balanced three-phase source serves three load: Load 1: 24 kW, 0.6 lagging p.f. Load 2: 10 kW, unity p.f. Load 3: 14 kVA, 0.8 leading p.f. If the line voltage of the load is 208 Vrms at 60 Hz, find the line current. A. 143 A B. 139 C. 141 A D. 137 A REE - September 2009 21. In two-wattmeter method of power measurement, the readings of the two wattmeters were 6, 717 watts and 2, 658 Watts, respectively. Find the power factor. A. 0.90 B. 0.70 C. 0.60 D. 0.80 REE - April 2005

Madhur L.

five-semicircular-conducting-plates-each-with-radius-a-are-attached-to-a-conducting-rod-along-their-

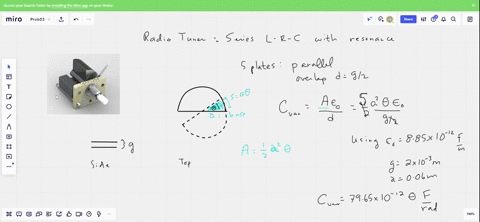

Five semicircular conducting plates, each with radius $a,$ are attached to a conducting rod along their common axis such that the plates are parallel with a separation gap $g$ between adjacent plates. A similar arrangement involving five additional semicircular conducting plates is attached to a second conducting rod symmetrically intertwined, upside down, with the first arrangement such that the plates can rotate freely, as shown in Fig. $\mathbf{P 3 1 . 5 3 .}$. The two five-plate constructions, with an adjacent plate separation of $g / 2,$ are insulated from each other, and wire leads are attached to the separate axles. This is a common type of variable capacitor, with a capacitance proportional to the overlap angle $\theta$. (a) Determine a formula for the capacitance $C$ in terms of $a, g,$ and $\theta$, where $\theta$ is in radians. (b) The plate radius is $a=6.00 \mathrm{~cm}$ while the gap distance is $g=2.00 \mathrm{~mm}$. This variable capacitor is placed in series with a $100 \mu \mathrm{H}$ inductor and a $10.0 \Omega$ resistor. A voltage source is supplied by an amplified signal from an antenna, and the output voltage is taken across the capacitor. The circuit is used as a radio receiver that receives a signal frequency equal to the resonance frequency of the $L-R-C$ circuit. To receive an AM radio signal at $1180 \mathrm{kHz},$ what angle $\theta$ in degrees, should be selected? (c) If the input signal is a sinusoidal voltage with amplitude $100.0 \mathrm{mV}$ and frequency $1180 \mathrm{kHz},$ what is the amplitude of the output voltage? (d) If the knob on the capacitor is turned so that $\theta=120^{\circ}$, to what frequency is the circuit tuned? (e) If the input signal has the frequency resonant with this setting and voltage amplitude $100 \mathrm{mV}$, what is the voltage amplitude of the output signal?
