5. 15p The voltage source of the circuit shown in the figure below is given Vs(t) = 60 sin(200t) (V) Using phasor analysis determine Vo in phasor form and then convert from frequency domain to time domain [ find vo(t) ]
Added by Mar-A J.
Close
Step 1
Step 1: Identify angular frequency ω = 200 rad/s and source phasor Vs = 60∠0° V (since sin -> convert to cosine reference: Vs_phasor = 60∠-90° if keeping sin; here use phasor for sin: 60∠0° with final time-domain as sin). Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 96 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

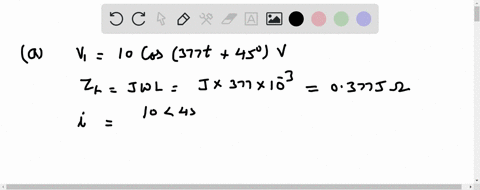

Calculate the current in the inductor shown in Fig. P8.9 if the voltage input is (a) $v_{1}(t)=10 \cos \left(377 t+45^{\circ}\right) \mathrm{V}$ (b) $v_{2}(t)=5 \sin \left(377 t-90^{\circ}\right) \mathrm{V}$ Give the answers in both the time and frequency domains.

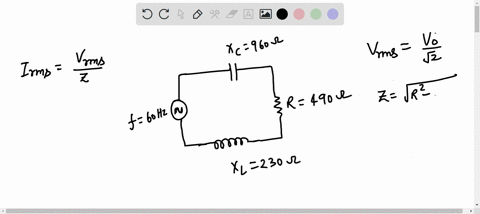

The 60 Hz AC source of a series circuit has a voltage amplitude of 120 V. The resistance, capacitive reactance, and inductive reactance are as shown in the figure. What is the rms current in the circuit? Xc = 960 ̩ R = 490 ̩ XL = 230 ̩ 0.097 A 0.17 A 0.14 A 0.12 A 0.11 A
