5. (a) Design filter for following characteristics curve. [Determine whether is it wideband or narrowband, if wide band then use \pm40db/decade as slope] A$_r$ 0 dB -3 dB Low-pass response High-pass response -40 dB/decade -40 dB/decade f$_{c1}$=15kHz Bandwidth=10kHz f
Added by Jose Francisco W.
Close
Step 1
The cutoff frequency (fc) is the frequency at which the filter starts attenuating the signal. In this case, the cutoff frequency is given as 15 kHz. Show more…
Show all steps
Your feedback will help us improve your experience
Shubham Sharma and 65 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

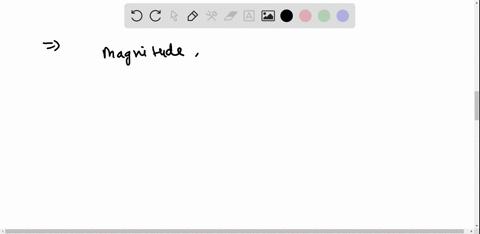

2) Draw the practical response curve of a High Pass filter, marking all details. If the cutoff frequency of this filter is 5 kHz, find the output in dB at the frequencies 20 kHz and 0.625 kHz, assuming a 6 dB/octave slope.
Shubham S.

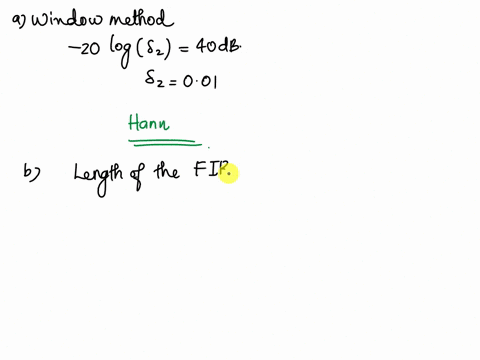

Consider an FIR lowpass filter design with the following specifications: Passband =0-800 Hz Stopband = 1,200-4,000 Hz Passband ripple = 0.1 dB Stopband attenuation = 40 dB Sampling rate = 8,000 Hz Determine the following: a. window method b. length of the FIR filter c. cutoff frequency for the design equation
Madhur L.
Sri K.
