6 12V R2 200Ω C1 100Ω L3 300Ω I1= I2= I3= IT = ZT = θ =
Added by Michelle S.
Close
Step 1
I1 is the current through the capacitor C1. I2 is the current through the resistor R2. I3 is the current through the inductor L3. The voltage source is 12V. Show more…
Show all steps
Your feedback will help us improve your experience
Breanna Ollech and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Breanna O.

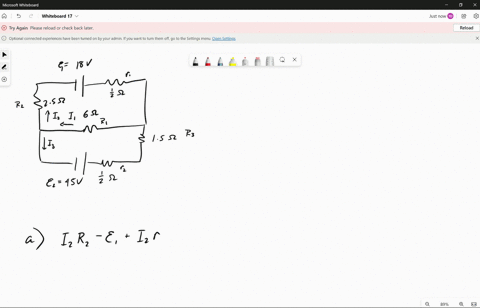

Problem 5: Consider the circuit diagram in the figure. Part (a) What is the equation which results when applying the loop rule to loop aedcba, in terms of the variables given in the figure? 0 = I2 R2 - ɐ1 + I2 r1 + I1 R1 Part (b) If the current through the middle part of the loop is I1 = 4.75 amps, what is the current through the top loop, I2, in amps?
Timothy J.
6 Ή 4 Ή R = 10 Ή Figure 17.1 See Figure 17.1. What is the total impedance Z T of this circuit? See Figure 17.1. What is the total current of this circuit if the potential E = 100 ∠30 degrees? See Figure 17.1. If Is = 1 A ∠80', what is the current through the coil? A 1 kHz signal E is applied in the circuit shown in Figure 17.1. What is the value of inductor L? See Figure 17.2. What is the total impedance Z T for this circuit? 10 Ή 10 Ή Figure 17.2
