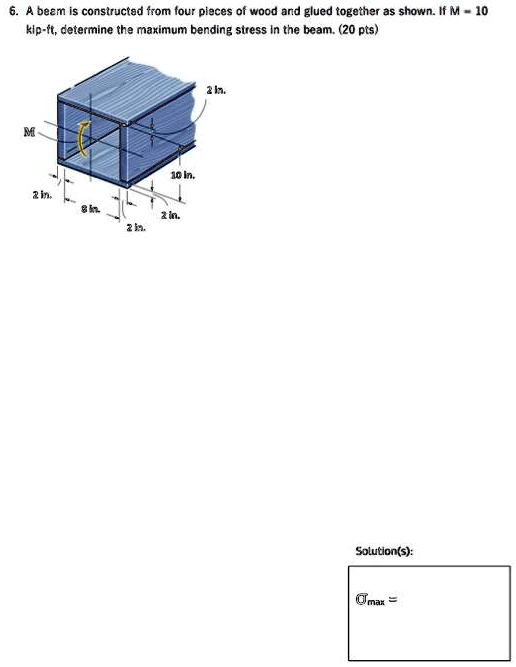

6. A beam is constructed from four pieces of wood and glued together as shown. If M = 10 kip-ft, determine the maximum bending stress in the beam. (20 pts) Solution(s): $\sigma_{max} = $
Added by Samantha E.
Close

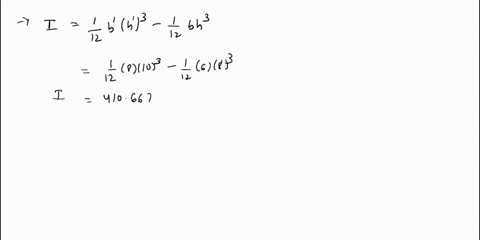

Step 1
To calculate Mmax, we need to consider the point of maximum bending moment, which occurs at the fixed end of the beam. The maximum bending moment can be calculated using the equation Mmax = PL, where P is the applied load and L is the distance from the point of Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The beam is constructed from four pieces of wood, glued together as shown. If M = 10 kip·ft, determine the maximum bending stress in the beam. Sketch a three-dimensional view of the stress distribution acting over the cross section.
Adi S.

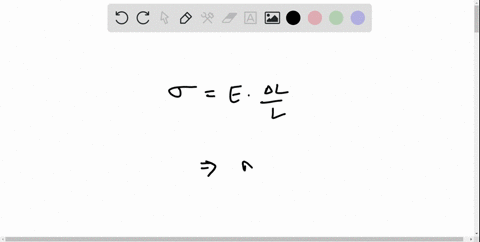

Three wooden beams are all subject to the same tensile stress. The beams have the original lengths shown below. Which beam will be the most centimeters in length in response to the stress? (a) beam A: 8 m (b) beam B: 4 m (c) beam C: 6 m (d) they are all the same.
Kritika M.
For the beam shown, calculate (a) the maximum bending stress; and (b) the bending stress at a point 0.5 in. from the top of the beam on section D. Answer: a) 10.12 ksi b) 5.06 ksi
Madhur L.
