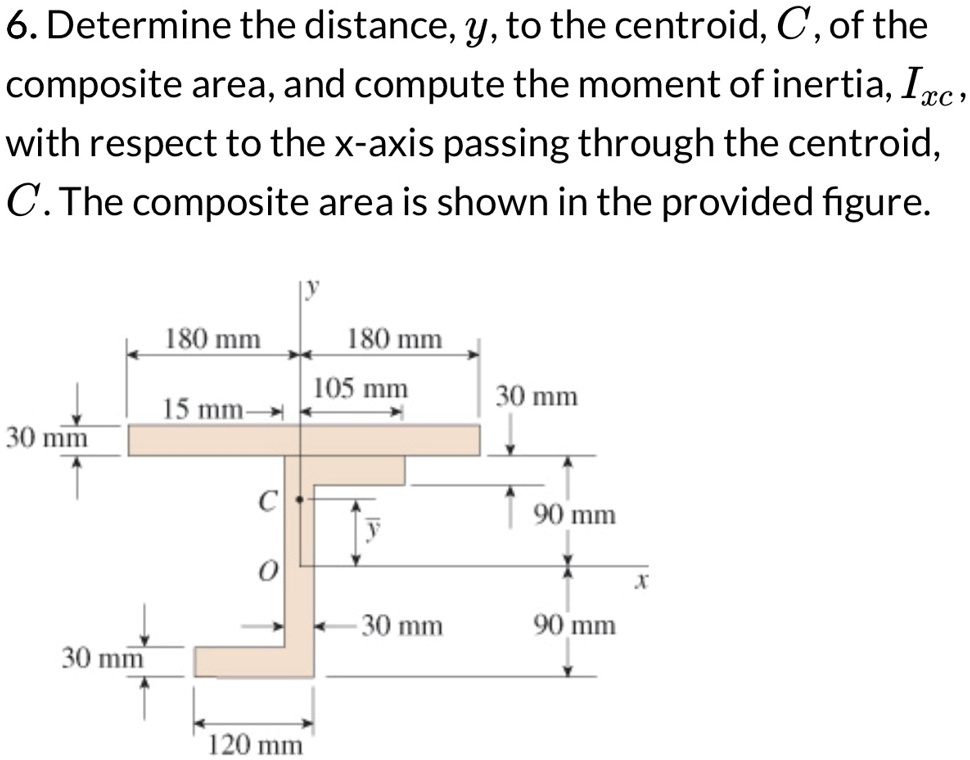

6. Determine the distance, $y$, to the centroid, $C$, of the composite area, and compute the moment of inertia, $I_{xc}$, with respect to the $x$-axis passing through the centroid, $C$. The composite area is shown in the provided figure.

Name: 6 determine the distance y to the centroid c of the composite area and compute the moment of inertia ixc with respect to the x axis passing through the centroid c the composite area is show 90666
Uploaded: 2020-10-07T06:27:18-08:00
Duration: 3 min 16 s
Channel: Khoobchandra Agrawal
Description: 6 determine the distance y to the centroid c of the composite area and compute the moment of inertia ixc with respect to the x axis passing through the centroid c the composite area is show 90666

          6. Determine the distance, $y$, to the centroid, $C$, of the composite area, and compute the moment of inertia, $I_{xc}$, with respect to the $x$-axis passing through the centroid, $C$. The composite area is shown in the provided figure.

6 determine the distance y to the centroid c of the composite area and compute the moment of inertia ixc with respect to the x axis passing through the centroid c the composite area is show 90666

Added by Elizabeth G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Khoobchandra Agrawal

10/07/2020

Step 1

Let's divide the I-beam into three rectangles: 1. Top flange (Rectangle 1) 2. Web (Rectangle 2) 3. Bottom flange (Rectangle 3) We will set the origin O at the bottom left corner of the web, as shown in the figure. However, the figure shows the origin O at the Show more…
