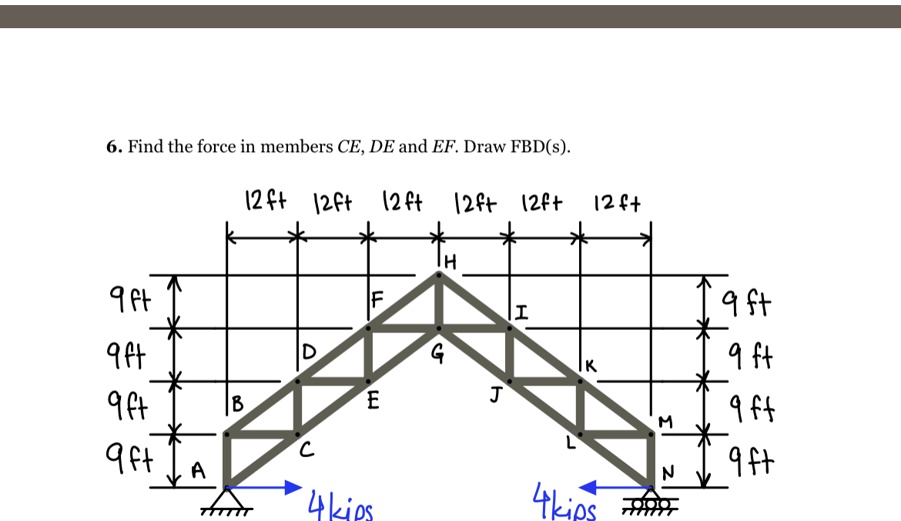

6. Find the force in members CE, DE and EF. Draw FBD(s). 12ft 12ft 12ft 12ft 12ft 12ft 9ft 9ft 9ft 9ft H F I D G K B E J M C L A N 4 kips 4kips 9ft 9ft 9ft 9ft
