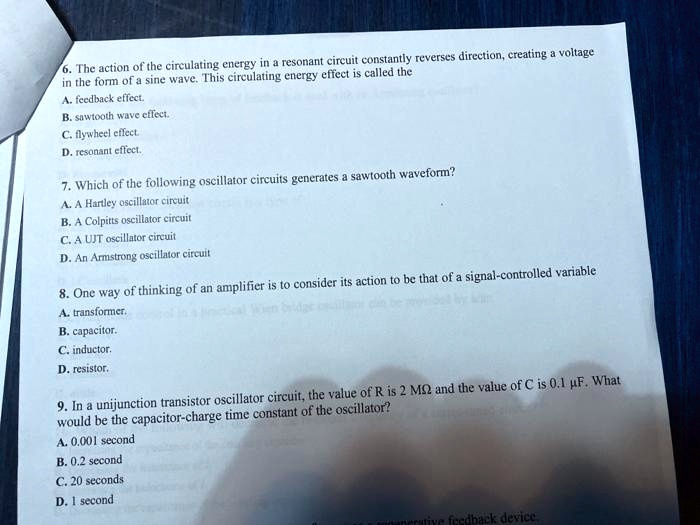

6. The action of the circulating energy in a resonant circuit constantly reverses direction, creating a voltage in the form of a sine wave. This circulating energy effect is called the A. feedback effect. B. sawtooth wave effect. C. flywheel effect. D. resonant effect. 7. Which of the following oscillator circuits generates a sawtooth waveform? A. A Hartley oscillator circuit B. A Colpitts oscillator circuit C. A UJT oscillator circuit D. An Armstrong oscillator circuit 8. One way of thinking of an amplifier is to consider its action to be that of a signal-controlled variable A. transformer. B. capacitor. C. inductor. D. resistor. 9. In a unijunction transistor oscillator circuit, the value of R is 2 M? and the value of C is 0.1 ?F. What would be the capacitor-charge time constant of the oscillator? A. 0.001 second B. 0.2 second C. 20 seconds D. 1 second
Added by Chad C.
Close
Step 1
The action of the circulating energy in a resonant circuit constantly reverses direction, creating a voltage in the form of a sine wave. This circulating energy effect is called the D. resonant effect. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 78 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?

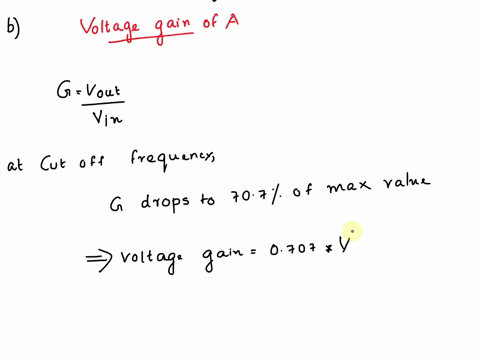

Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
11. The frequency response of an amplifier is a graph of the output voltage versus frequency. 12. At the lower or upper cutoff frequency, the voltage gain is 0.707 Avmid. 13. The unity-gain frequency (fT) equals the product of the mid-range voltage gain (AV(mid)) and the 14. The high frequency response of a BJT amplifier is affected by: 15. Miller capacitance affects the high frequency response.
Madhur L.

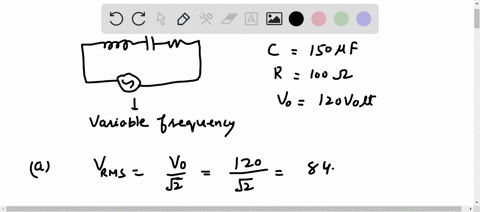

A circuit consists of a variable frequency A.C. voltage source that supplies 120V peak, and a 10 Ohms resistor, a 150 μF capacitor, and a 150 mH inductor, all in series. Please include the formula for each part. A) Calculate the RMS voltage. B) Calculate the resonant frequency. C) Calculate the inductive reactance at the resonant frequency. D) Calculate the quality factor for the resonant circuit.
Khoobchandra A.
The resistor, inductor, capacitor, and voltage source described in Exercise 31.14 are connected to form an $L$-$R$-$C$ series circuit. (a) What is the impedance of the circuit? (b) What is the current amplitude? (c) What is the phase angle of the source voltage with respect to the current? Does the source voltage lag or lead the current? (d) What are the voltage amplitudes across the resistor, inductor, and capacitor? (e) Explain how it is possible for the voltage amplitude across the capacitor to be greater than the voltage amplitude across the source.
