6. Using K-map, determine the minimal Product-of-Sums expression for the following minterms: (i) m1 + m3 + m5 + m7 + m12 + m13 + m8 + m9 (ii) m0 + m5 + m7 + m8 + m11 + m13 + m15
Added by George H.
Close
Step 1
The K-map would look like this: ``` AB CD 00 01 11 10 00 - 1 - - 01 - 1 1 1 11 1 1 - - 10 1 1 - - ``` The "-" represents a 0 minterm which we don't care about. Now we group the 1s. We can make two groups of four 1s. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Explain how K-maps can be used to simplify product-of-sums expansions in three variables. [Hint: Mark with a 0 all the maxterms in an expansion and combine blocks of maxterms. $]$
Boolean Algebra
Minimization of Circuits
Evaluate the sums. $$ \sum_{k=1}^{5} k(3 k+5) $$
Integrals
Sigma Notation and Limits of Finite Sums

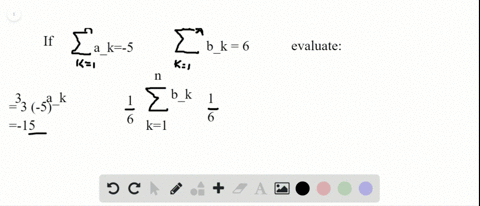

Suppose that $\sum_{k=1}^{n} a_{k}=-5$ and $\sum_{k=1}^{n} b_{k}=6 .$ Find the values of a. $\sum_{k=1}^{n} 3 a_{k}$ b. $\sum_{k=1}^{n} \frac{b_{k}}{6}$ c. $\sum_{k=1}^{n}\left(a_{k}+b_{k}\right)$ d. $\sum_{k=1}^{n}\left(a_{k}-b_{k}\right)$ e. $\sum_{k=1}^{n}\left(b_{k}-2 a_{k}\right)$
