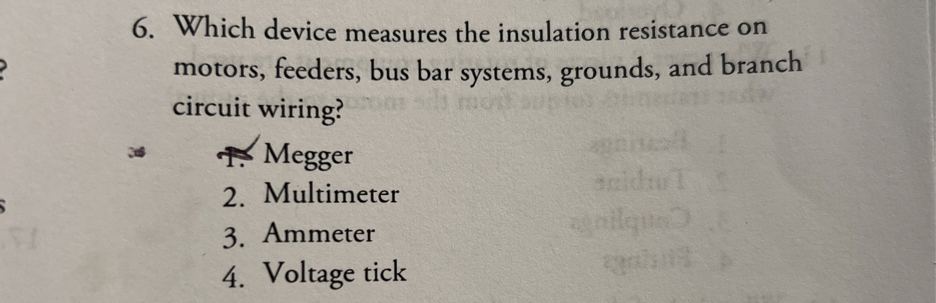

6. Which device measures the insulation resistance on motors, feeders, bus bar systems, grounds, and branch circuit wiring? T. Megger 2. Multimeter 3. Ammeter 4. Voltage tick
Added by Aaron M.
Close
Step 1
- A Megger is a device specifically designed to measure insulation resistance in electrical systems. - A Multimeter is a versatile tool that can measure voltage, current, and resistance, but it is not specifically designed for insulation resistance testing. Show more…
Show all steps
Your feedback will help us improve your experience
Rashmi Sinha and 84 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A. Direction: Identify the word or phrase being described in the sentence. Write your answers in your notebook. 1. It is an electronic measuring instrument that combines several measurement functions in one unit. 2. In diodes, what does the silver stripe represent? 3. This is an electronic/electrical component that stores energy in the form of electric charge. 4. This allows you to change the function between volts, ohms, and amps, and to change the scale of the meter. 5. In testing capacitors, if the multimeter shows very low resistance, it means that the capacitor is defective. 6. These are components used to resist the flow of electric current. 7. It is a system used to determine the value of a resistor without using a multimeter. 8. What defective capacitor shows very low resistance? 9. A type of transformer that is used to increase the output voltage. 10. A type of transformer that is used to decrease the output voltage.
Rashmi S.

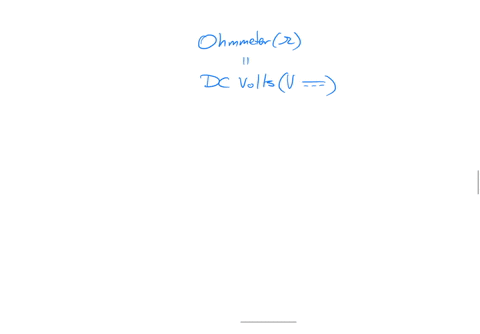

II. VOM AS A VOLTMETER A. EXERCISE ON CHOOSING THE RIGHT FUNCTION To measure the resistance of a potentiometer To measure the condition of a conductor To measure the output of an adapter charger To measure the output of a power outlet To measure the output of a square wave generator To measure the output bias of a square wave generator To measure the current generated by an alkaline battery module To measure the output of a USB charger To measure the current generated by a 6-volt AC transformer To measure the output of a 9-volt square battery To measure the condition of a car battery Assume DMM is auto-range, True rms.
Andreas P.

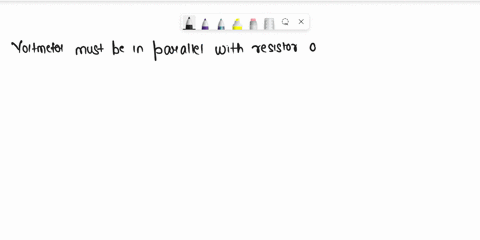

In the following circuits, which one can measure the current and the voltage to determine the resistance value of the resister with the ammeter and the voltmeter? Fill in the number of the correct circuit (1 - 6).
