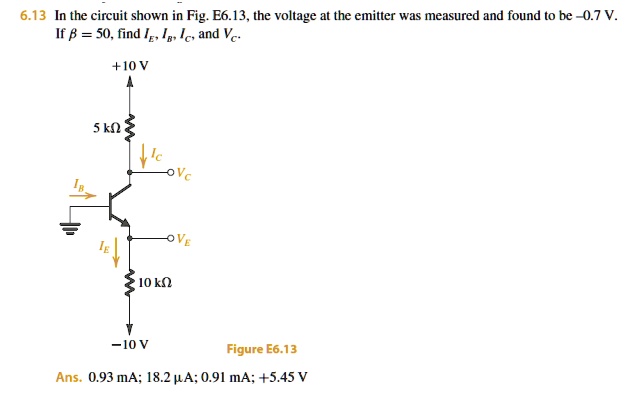

6.13 In the circuit shown in Fig. E6.13, the voltage at the emitter was measured and found to be -0.7 V. If ? = 50, find IE, IB, IC, and VC.
Added by Jonathan F.
Close
Step 1
The emitter voltage is given as -0.7V, β (beta, the current gain) is 50, and we need to find Ig (base current), Ic (collector current), and Vc (collector voltage). Assuming the circuit is a simple NPN transistor amplifier with a collector resistor (Rc) of 5kΩ, an Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 72 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuit shown in the figure, find the emitter, base, and collector voltages and currents. Use ̢ =50, but assume V(BE) = 0.8 V independent of current level.
Madhur L.

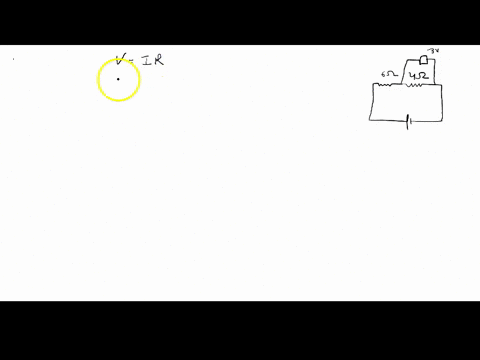

In the opposite circuit (R1 = 6Ω) (R2 = 4Ω). And the reading of voltmeter (3v) Find the following: 1- The amount of voltage drop in the resistance (R1 = 6Ω) (5 Points) 7.5 V 3.0 V 4.5 V 10.5 V
