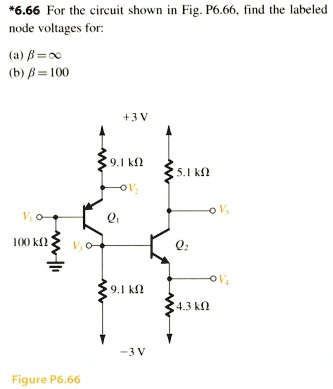

*6.66 For the circuit shown in Fig. P6.66, find the labeled node voltages for: (a) $eta = infty$ (b) $eta = 100$
Added by Patrick P.
Close
Step 1
We'll call the top node A, the middle node B, and the bottom node C. Next, let's analyze the circuit using Kirchhoff's laws. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuits in Fig. P6.61(b), (c), and (e), find values for the labeled node voltages and branch currents. Assume V to be very high. +3V 6.2kΩ 80kΩ 0V V = 300kΩ -3V Figure P6.61(e)
Madhur L.
6.61 For the circuits in Fig. P6.61, find values for the labeled node voltages and branch currents. Assume ̢̢ to be very high. +3 V +3 V 3.6 k̩ 3.6 k̩ 0V 43 k̩ 4.7 k̩ 5 mA -3 V (a) (b) Figure P6.61
Adi S.
Solve for the node voltages shown in Figure P2.49. Then, find the value of $i_{s}$
