6.7 Find the electric field and electrostatic potential profile due to the charge distribution shown in Fig. P6.7. Make labeled sketches of x and the potential x. In your potential plot, take the reference potential to be = 0 at x = 0. 20 -2W W W Charge distribution FIGURE P6.7 130 MICROELECTRONIC DEVICES AND CIRCUITS Vo Impulse (Number per cm2) . N - X

Transcript

00:01 In this problem, we have been given that there are two charges.

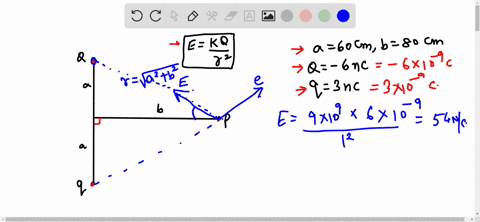

00:03 Q and q they are kept at the positions indicated, and we need to figure out the total electric field's magnitude at this point b, provided that a is 60 centimeter, b is 80 centimeters, and charge capital q is minus 6 nanoculum, which is minus 6 into 10 raise to minus 9 column, and small q charge, that's 3 into 10 raise to minus 9 column.

00:28 So here we will use the expression of electric field that's kq by r square to get the electric field because of one point charge.

00:36 Since q is negative, we know the direction of electric field.

00:39 It's from positive to the negative.

00:41 So it will be in this direction.

00:43 And electric field because of this small q that will be in this direction along the line joining because it's positive charge and electric field will be away from it.

00:53 Now here we observe.

00:54 Let's take the electric field because of small charges e and electric field because of the big q charge as so e here will be 9 into 10 raise to 9 that's the value of k we multiply with the magnitude of charge that's 6 into 10 raise to minus 9 and we divide it by the square of the distance here we observe that the angle is 90 degree and using pythagoras rule the distance r can be computed by taking the squares of a and b and taking the root of that so we get that as 100 cm, which is 1 meters.

01:30 So when we square one, it's going to be just the same thing.

01:33 So the electric field comes out to be 54 newton's per column.

01:37 Also, let's figure out the angle here because we will require them to get the complete magnitude.

01:43 So angle can be determined by using simple trigonometry, and that angle will be tan inverse of the perpendicular upon the adjacent.

01:51 So when we take the perpendicular and divide it by the adjacent, we're going to get to.

01:56 0 .75 and we take the tan inverse of that to get the angle here as 37 degree approximately.

02:06 So here the magnitude of this electric field we have figured out and let's convert that in terms of vector.

02:12 So it will have two components, one along the negative x direction and along the positive y direction will be one component.

02:20 So e vector will be minus e cos 37 degree along i cap plus e sine 37 degree along positive wide direction.

02:32 So here when we multiply 54 with the value of cost 37, we're going to get minus 43 .2 icap plus here we multiply the magnitude of e with sign 37, and that's 32 .4j cap...
