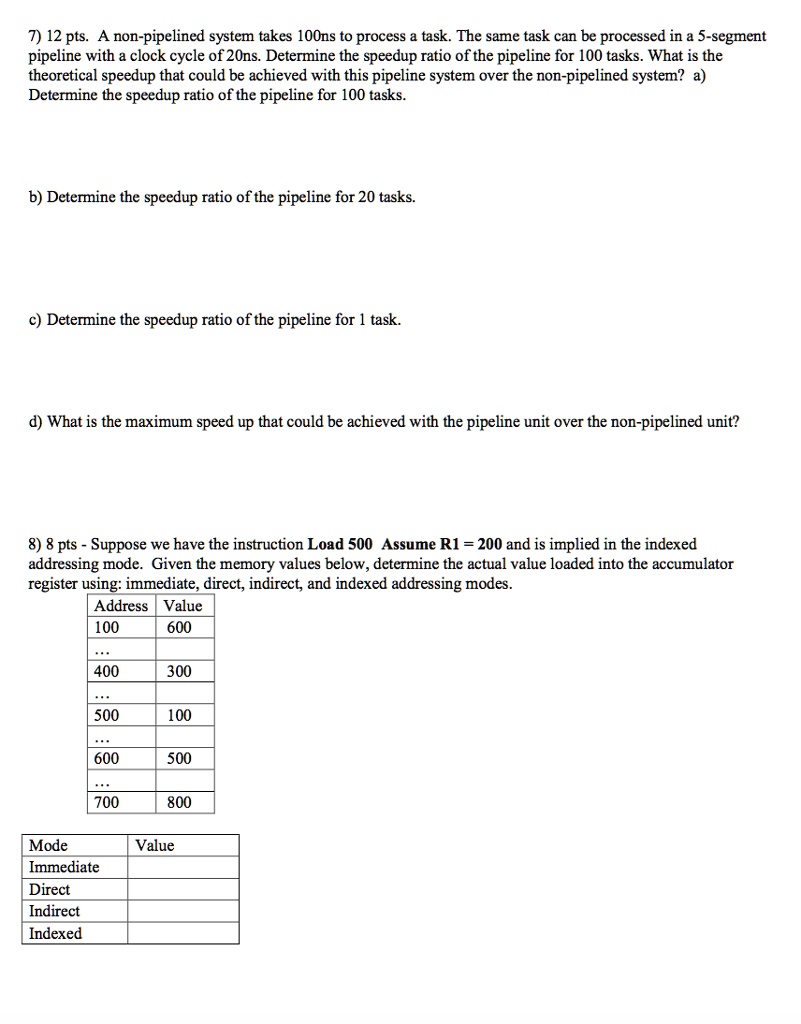

7) 12 pts. A non-pipelined system takes 100ns to process a task. The same task can be processed in a 5-segment pipeline with a clock cycle of 20ns. Determine the speedup ratio of the pipeline for 100 tasks. What is the theoretical speedup that could be achieved with this pipeline system over the non-pipelined system? a) Determine the speedup ratio of the pipeline for 100 tasks. b) Determine the speedup ratio of the pipeline for 20 tasks. c) Determine the speedup ratio of the pipeline for 1 task. d) What is the maximum speed up that could be achieved with the pipeline unit over the non-pipelined unit? 8) 8 pts - Suppose we have the instruction Load 500 Assume R1 = 200 and is implied in the indexed addressing mode. Given the memory values below, determine the actual value loaded into the accumulator register using: immediate, direct, indirect, and indexed addressing modes. Address Value 100 600 ... 400 300 ... 500 100 ... 600 500 ... 700 800 Mode Value Immediate Direct Indirect Indexed
Added by Alice J.
Close
Step 1
The pipelined system takes 20ns per clock cycle and has 5 segments, so it can process one task in 20 x 5 = 100ns. Show more…
