Question

Block A rests on top of block B, which is pulled to the left by force F (as shown in the figure below). The table is frictionless, but there is friction between blocks A and B. a. Draw free-body diagrams for blocks A and B. Clearly label each of the forces using the notation shown to you in the book and in class. b. List which pairs of forces are action-reaction forces between blocks A and B.

          Block A rests on top of block B, which is pulled to the left by force F (as shown in the figure below). The table is frictionless, but there is friction between blocks A and B.

a. Draw free-body diagrams for blocks A and B. Clearly label each of the forces using the notation shown to you in the book and in class.

b. List which pairs of forces are action-reaction forces between blocks A and B.

Show more…

Added by Rachel S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Pritesh Ranjan

09/27/2021

Step 1

**Block A:** - Weight (W_A) acting downwards - Normal force (N_A) acting upwards - Friction force (f) acting to the right **Block B:** - Weight (W_B) acting downwards - Normal force (N_B) acting upwards - Friction force (f) acting to the left **Step 2:** List Show more…

Show all steps

lock

Thanks for your feedback!

Block A rests on top of block B, which is pulled to the left by force F (as shown in the figure below). The table is frictionless, but there is friction between blocks A and B. a. Draw free-body diagrams for blocks A and B. Clearly label each of the forces using the notation shown to you in the book and in class. b. List which pairs of forces are action-reaction forces between blocks A and B.

Play audio

Feedback

Powered by NumerAI

Pritesh Ranjan and 55 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 In this problem we have been given that there are two blocks.

00:04 Block a is resting on the top of block b, and block b is over the surface of the table here.

00:14 So we need to draw the free body diagram of both these blocks.

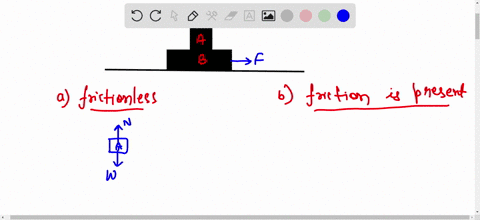

00:22 So observing block a.

00:24 On block a, there will be the weight of this block a.

00:28 So that will be, let's say, wa.

00:30 And there will be normal force on this block a because of the surface of these two blocks in contact.

00:38 So that normal force, let's say it is nb, which is the normal force provided by block.

00:45 And here, the surface of the table is frictionless, but yes, there is given a friction between block a and block b.

00:53 Also, there is a force applied on this block b.

00:58 So block a will have tendency to slip in the backward direction.

01:02 So as a result, the friction force on a will be to the right.

01:07 So let's say this is the friction force represented by small f.

01:12 Talking about block b, there will be weight of this block b.

01:17 There will be normal force applied on this block b because of the surface in contact with the ground.

01:23 So let's say that normal force is ng.

01:26 And there will be normal force acting in the downward direction.

01:30 That will be provided by the surface of the surface...
