7075-T6 Al has a tensile yield strength of σY = 450 MPa. A circular tube of 7075-T6 Al supports an axial load of 60 kN in tension and a torque of 1.0 kN-m. The average diameter of the tube is 50.0 mm. Use the von Mises yield criterion. (a) What is the safety factor against yielding if the wall thickness is 2.0 mm? (1.5) (b) What value of thickness with the same diameter would provide a safety factor of 2.0 against yielding? (2.6 mm)
Added by -Scar S.
Step 1
0 mm. Given: - Tensile yield strength, σY = 450 MPa - Axial load, P = 60 kN = 60,000 N - Torque, T = 1.0 kN-m = 1,000 N-m - Average diameter, d = 50.0 mm = 0.05 m - Wall thickness, t = 2.0 mm = 0.002 m Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 93 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

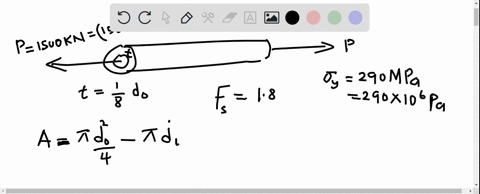

A copper alloy pipe having yield stress $\sigma_{Y}=290 \mathrm{MPa}$ is to carry an axial tensile load $P=1500 \mathrm{kN}$ (see figure part a). A factor of safety of 1.8 against yielding is to be used. (a) If the thickness t of the pipe is to be one-eighth of its outer diameter, what is the minimum required outer diameter $d_{\min } ?$ (b) Repeat part (a) if the tube has a hole of diameter $d / 10$ drilled through the entire tube as shown in the figure part b.
