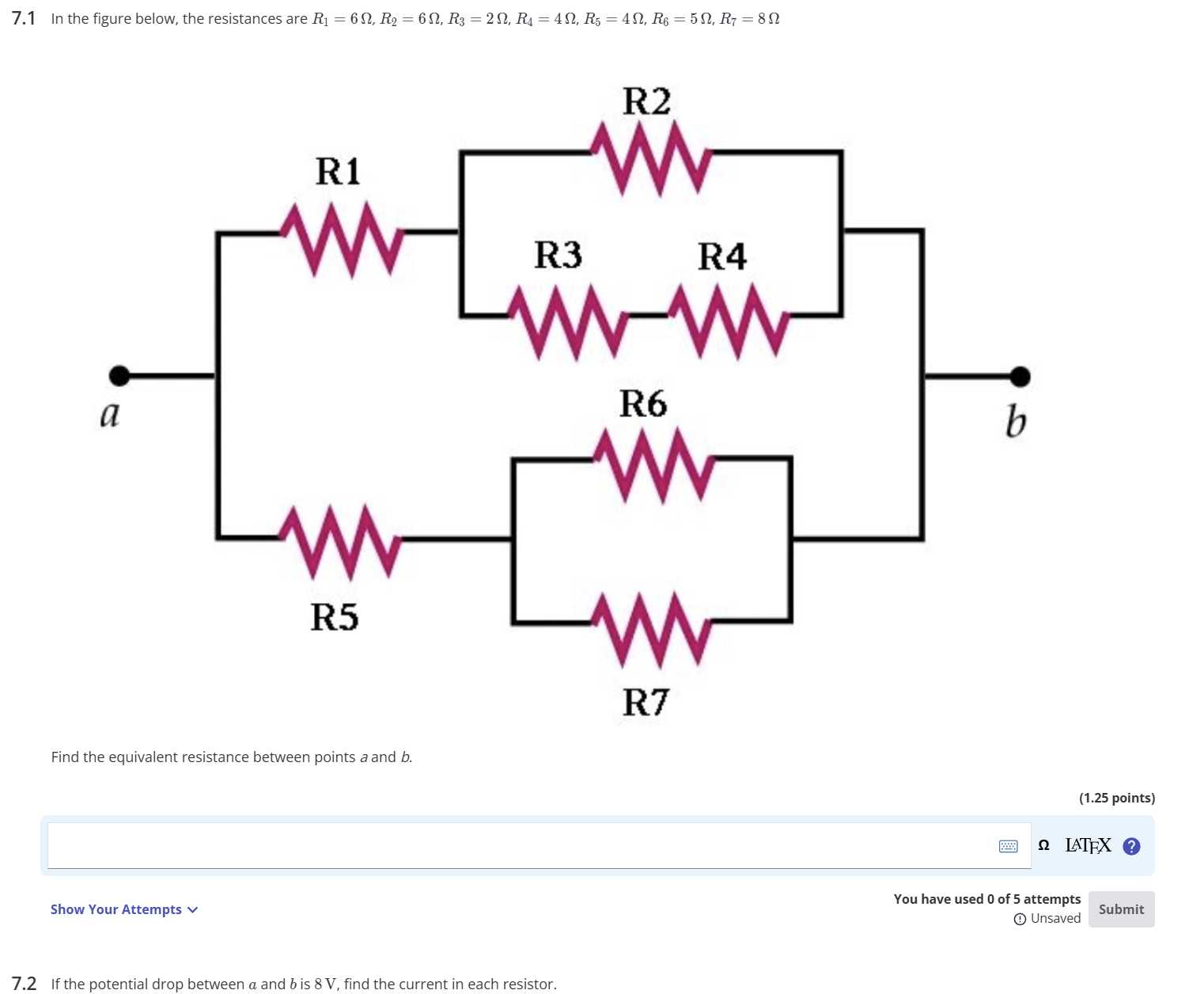

7.1 In the figure below, the resistances are \( R_{1}=6 \Omega, R_{2}=6 \Omega, R_{3}=2 \Omega, R_{4}=4 \Omega, R_{5}=4 \Omega, R_{6}=5 \Omega, R_{7}=8 \Omega \)
Find the equivalent resistance between points \( a \) and \( b \).
(1.25 points)
\( \Omega \) LATFX
Show Your Attempts \( \checkmark \)
You have used 0 of 5 attempts
(1) Unsaved
Submit
7.2 If the potential drop between \( a \) and \( b \) is 8 V , find the current in each resistor.
