This is problem 101 of chapter 7 .4 of vector mechanics for engineers, statics, and dynamics.
00:08

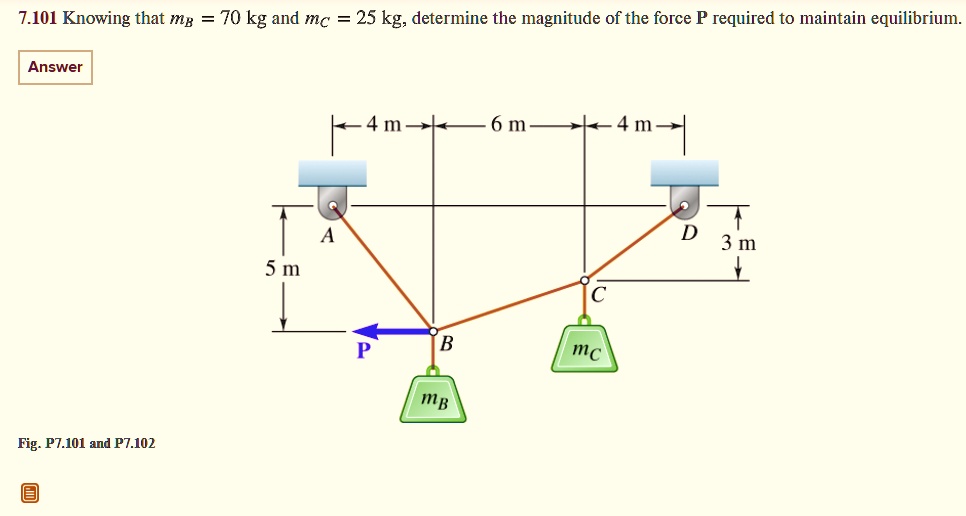

So in this problem, there is a cable going from a to d, and there is a mass at b of 70 kilograms, and there's a mass at c of 25 kilograms.
00:20
The horizontal distance from a to b is 4 meters, from b to c is 6 meters, and from c to d is 4 meters.
00:27
The vertical distance from c to d is 3 meters and from a to b is 5 meters.
00:34
And there is a force p in the negative x direction at b.
00:38
And our task for this problem is to find the value of p to maintain equilibrium.
00:44
So we're going to start out with determining the weight of b.
00:50
And to do this, it is the mass of b times gravity.
00:56
So this is 70 times 9 .81, which is 6 .1.
01:06
686 .7 newtons.
01:09
And we also need to calculate the weight of c.
01:12
This is the mass of c times g, which is 25 times 9 .81 for gravity.
01:23
And this equals 245 .25 newtons.
01:30

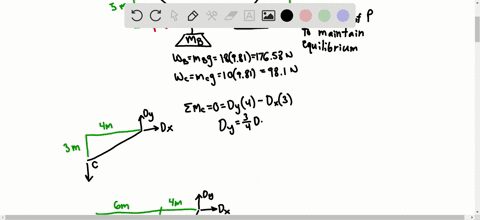

So now we're going to draw a free body diagram from c to d.
01:33
Now we're going to include the reaction forces at d.
01:37
Dy is in the positive y direction, and dx is in the positive direction.
01:43
So we will be taking the sum of moments of c and setting that equal to zero.
01:50
So it'll be d .y times four because there's four meters in the horizontal direction between d and c minus d x times three because there's three meters in the vertical direction between c and d.
02:04
And i'm just going to go ahead and solve for d .y to simplify, just three -force dx.
02:11
And we're going to need this equation later on.
02:17
Next we are going to draw a free body diagram from b to d.
02:24
We're going to take the sum of moments around b and saying that equal to 0.
02:30
So this will equal d .y times 10.
02:33
These are 10 meters in the horizontal direction between d and b.
02:38
Minus d x times 5.
02:40
These are 5 meters in the vertical direction between d and b.
02:45
Minus the weight of c, which is 245 .25 times 6...
