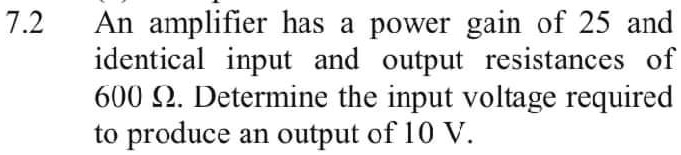

7.2 An amplifier has a power gain of 25 and identical input and output resistances of 600 ?. Determine the input voltage required to produce an output of 10 V.
Added by Alexander B.
Close
Step 1
We are given that the power gain is 25 and the output voltage is 10V. We can substitute these values into the formula to solve for the input voltage. 25 = (10/Vin)^2 Taking the square root of both sides, we get: Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 94 other Physics 102 Electricity and Magnetism educators are ready to help you.
