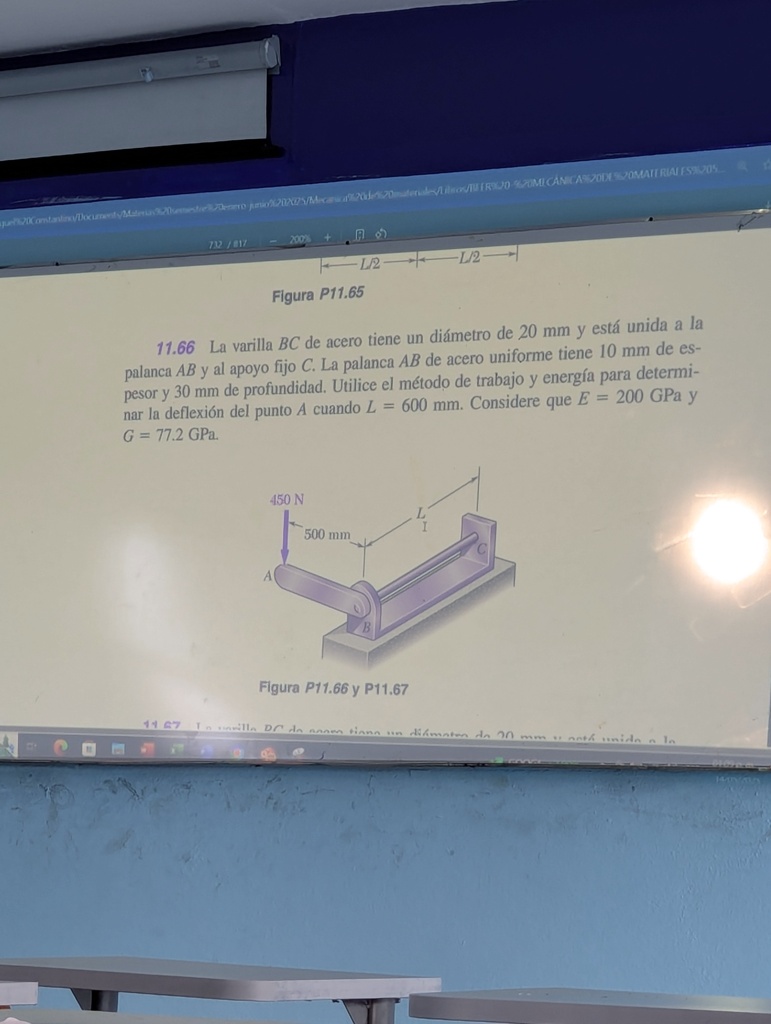

732 / 817 - 200% + L/2 L/2 Figura P11.65 11.66 La varilla BC de acero tiene un diámetro de 20 mm y está unida a la palanca AB y al apoyo fijo C. La palanca AB de acero uniforme tiene 10 mm de es- pesor y 30 mm de profundidad. Utilice el método de trabajo y energía para determi- nar la deflexión del punto A cuando L = 600 mm. Considere que E = 200 GPa y G = 77.2 GPa. 450 N 500 mm Figura P11.66 y P11.67 11.67 La varilla BC de acero tiene un diámetro de 20 mm y está unida a la
Added by Andrea A.
Close
Step 1
The problem asks to determine the deflection of point A using the work and energy method. Given parameters: - Rod BC: diameter $d_{BC} = 20$ mm - Lever AB: uniform steel, thickness $t_{AB} = 10$ mm, depth $h_{AB} = 30$ mm - Applied force at A: $P = 450$ N - Length Show more…
Show all steps
Your feedback will help us improve your experience
Adriano Chikande and 71 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The 20 -mm-diameter steel rod $B C$ is attached to the lever $A B$ and to the fixed support $C$. The uniform stecl lever is 10 mm thick and $30 \mathrm{mm}$ decp. Using the method of work and chergy, detcrmine the Iength $l$. of the rod $B C$ for which the deflection at point $A$ is 40 mm. Use $E=200 \mathrm{GPa}$ and $C=77.2 \mathrm{GPa}$.
Adriano C.

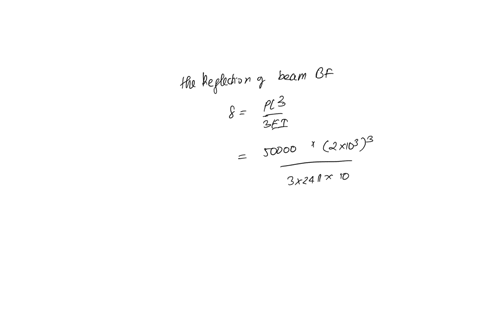

Problem 3. (60 points) Two cantilever beams AD and BF of equal flexural rigidity EI = 24 x 10^12 N.mm^2, shown in the following figure, are interconnected by a taut steel rod DC (E = 200 GPa). Rod DC is 5000 mm long and has a cross section of A = 300 mm^2. Find the deflection of cantilever AD at point D due to a force P = 50 kN applied at point F.
Lien L.
Two cylindrical rods, one of steel (section AC) and the other of brass (section BC), are joined at C and restrained by rigid supports at A and B. For the P = 100 kN, and knowing that EAC = 200 GPa and ECB = 105 GPa, determine (a) the reactions at A and B, (b) the deflection of point C. Leave answer in 3 significant figures. The diameter of both rods is 60 mm.
Sai S.
