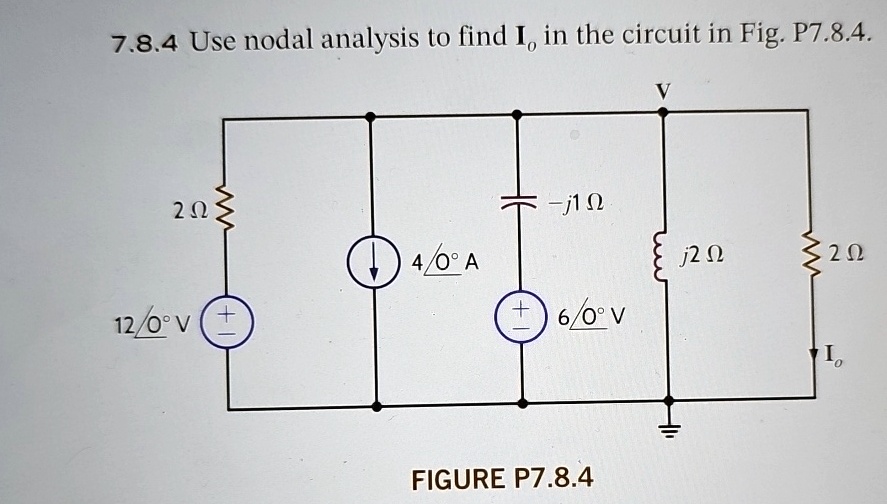

7.8.4 Use nodal analysis to find $I_o$ in the circuit in Fig. P7.8.4. V 2 $\Omega$ -j1 $\Omega$ 4/0° A j2 $\Omega$ 2 $\Omega$ 12/0° V 6/0° V $I_o$ FIGURE P7.8.4

Name: 784 use nodal analysis to find io in the circuit in fig p784 v 2 omega j1 omega 40 a j2 omega 2 omega 120 v 60 v io figure p784 21161
Uploaded: 2021-06-20T03:51:43-08:00
Duration: 2 min 50 s
Channel: Khoobchandra Agrawal
Description: 784 use nodal analysis to find io in the circuit in fig p784 v 2 omega j1 omega 40 a j2 omega 2 omega 120 v 60 v io figure p784 21161

          7.8.4 Use nodal analysis to find $I_o$ in the circuit in Fig. P7.8.4.
V
2 $\Omega$
-j1 $\Omega$
4/0° A
j2 $\Omega$
2 $\Omega$
12/0° V
6/0° V
$I_o$
FIGURE P7.8.4

Added by Anthony J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Khoobchandra Agrawal

06/20/2021

Step 1

The current leaving the node through the 2 $\Omega$ resistor connected to the 12/0° V source is $\frac{V - 12\angle 0^\circ}{2}$. The current leaving the node through the current source is -4/0° A. The current leaving the node through the capacitor is $\frac{V - Show more…
