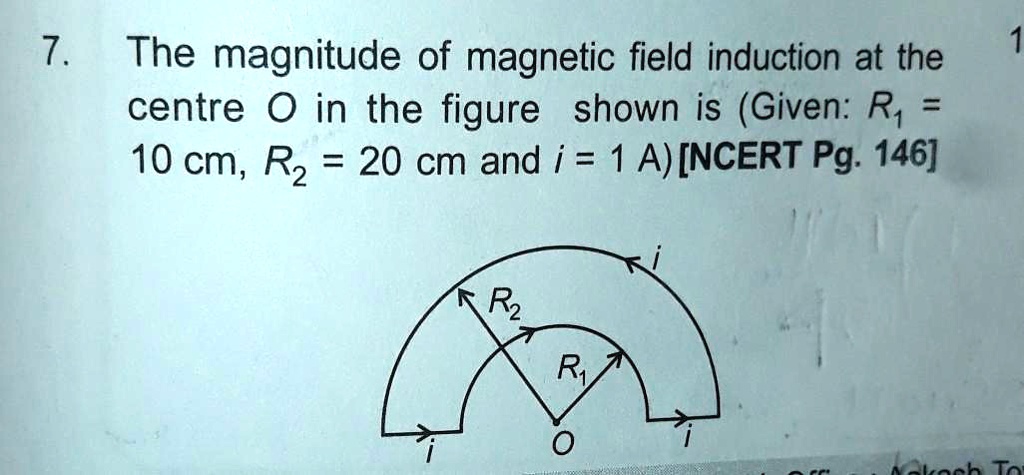

7. The magnitude of magnetic field induction at the centre O in the figure shown is (Given: R1 = 10 cm, R2 = 20 cm and i = 1 A)
Added by Drew W.
Close
Step 1
The magnetic field created by a circular arc of radius R and angle θ carrying a current I is given by the formula B = μ0Iθ/4πR, where μ0 is the permeability of free space. In this case, we have two arcs: one with radius R1 = 10 cm and angle 180°, and another Show more…
Show all steps
Your feedback will help us improve your experience
Timothy James and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the magnitude of the magnetic field at point P. On the figure, the current is 2.0 A, a = 2.0 cm, and b = 4.0 cm. 0.39 ̄T 39.0 ̄T 42.0 ̄T 9.40 ̄T
Maitreya E.
Find the magnetic field at the point O, if the current is I = 100 A and R=20 cm.
Adi S.

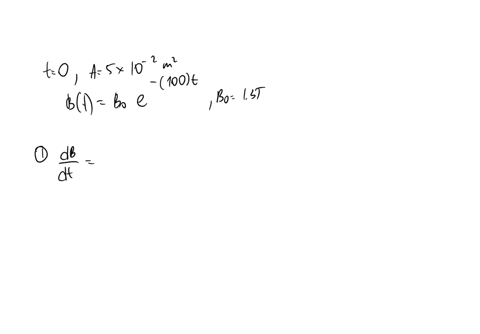

The magnetic field in the figure is changing in strength as B(t) = B0 e^{-(100 s^{-1})t} where B0 = 1.3 T. Determine the magnitude of the induced emf in Volts at t = 0 on the pictured loop of area 5 x 10^{-2} m^2.
