8. In the circuit shown, how many volts are impressed across the meter, and how many amps flow through it? 12-V dc 1 A 100 turns Meter
Added by Levi L.
Close
Step 1
Given that the voltage drop across the 100-turn coil is 2 volts, and the total voltage in the circuit is 12 volts, we can calculate the voltage impressed across the meter by subtracting the voltage drop from the total voltage: Voltage impressed across the meter = Show more…
Show all steps
Your feedback will help us improve your experience
Suman K and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

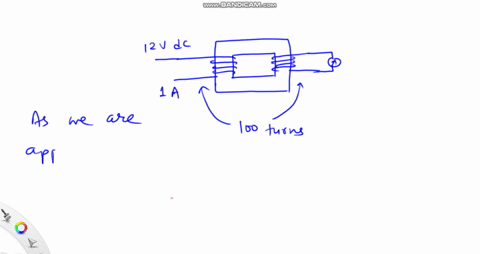

In the circuit shown, how many volts are impressed across the meter, and how many amps flow through it?
Vishal G.
Calculate the resistance in a circuit where the current is 10 amps and the voltage is 120 volts.
Rashmi P.
A $12.0$ - $\mathrm{V}$ battery supplies $20.0 \mathrm{~m} \mathrm{~A}$ to a resistive circuit. How much power does it provide?
