The figure on the side is showing how the voltage on the capacitor in an RC-circuit changes with time. If the capacitor has a magnitude of 30 ?F, then the resistor R has the value of Select one: a. 10 ? b. 30 ? c. 30 M? d. 1 M?
Added by Jessica L.
Close
Step 1
First, we need to find the time constant of the RC circuit, which is given by the product of the resistance and capacitance: τ = RC = 2 x 30 x 10^-6 = 60 x 10^-6 seconds Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 50 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the RC circuit, the capacitor is initially uncharged when the switch is closed. The time (in seconds) required for the current to reach 0.2 A is given by R = 40 kΩ, C = 50 µF, and emf = 20 V.
Madhur L.

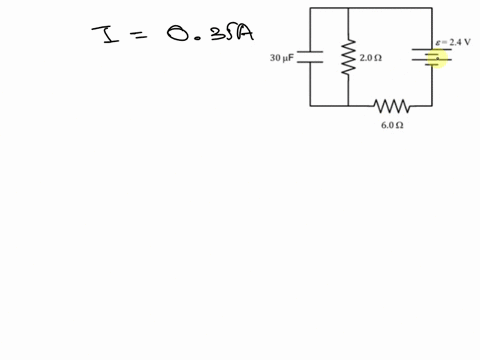

A circuit is made with two resistors, an emf, and a capacitor as shown below. When the current through the 6 ̐̐ resistor is 0.35 A, what charge is stored on the capacitor? A. 4.5 ̐C B. 21 ̐C C. 9 ̐C D. 18 ̐C E. 36 ̐C
