Question

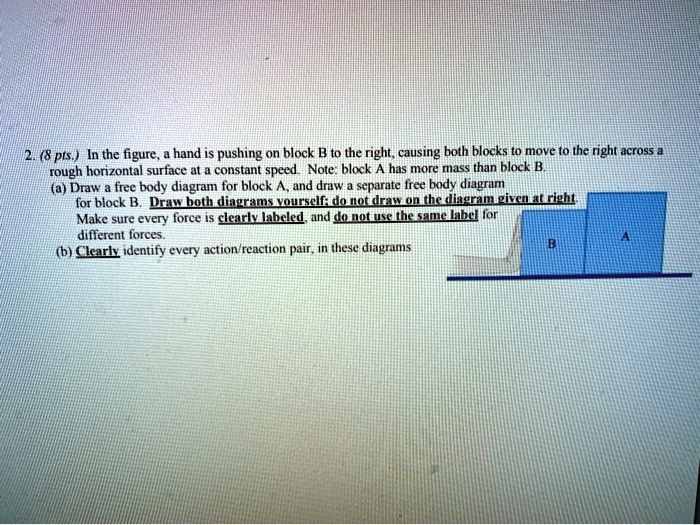

In the figure, a hand is pushing on block B to the right, causing both blocks to move to the right across a rough horizontal surface at a constant speed. Note: block A has more mass than block B. (a) Draw a free body diagram for block A, and draw a separate free body diagram for block B. Draw both diagrams yourself; do not draw on the diagram given at right. Make sure every force is clearly labeled, and do not use the same label for different forces. (b) Clearly identify every action/reaction pair, in these diagrams

          In the figure, a hand is pushing on block B to the right, causing both blocks to move to the right across a rough horizontal surface at a constant speed. Note: block A has more mass than block B.
(a) Draw a free body diagram for block A, and draw a separate free body diagram for block B. Draw both diagrams yourself; do not draw on the diagram given at right.
Make sure every force is clearly labeled, and do not use the same label for different forces.
(b) Clearly identify every action/reaction pair, in these diagrams

In the figure, a hand is pushing on block B to the right, causing both blocks to move to the right across a rough horizontal surface at a constant speed. Note: block A has more mass than block B.
(a) Draw a free body diagram for block A, and draw a separate free body diagram for block B. Draw both diagrams yourself; do not draw on the diagram given at right.
Make sure every force is clearly labeled, and do not use the same label for different forces.
(b) Clearly identify every action/reaction pair, in these diagrams
