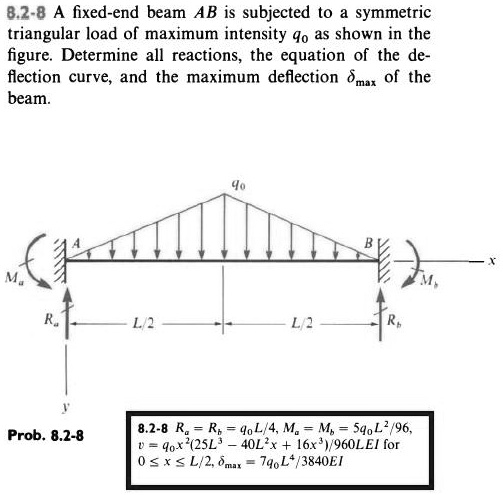

8.2-8 A fixed-end beam AB is subjected to a symmetric triangular load of maximum intensity $q_0$ as shown in the figure. Determine all reactions, the equation of the de- flection curve, and the maximum deflection $\delta_{max}$ of the beam. Prob. 8.2-8 8.2-8 $R_A = R_B = q_0L/4$, $M_A = M_B = 5q_0L^2/96$, $v = q_0x^2(25L^3 - 40L^2x + 16x^3)/960LEI$ for $0 \le x \le L/2$, $\delta_{max} = 7q_0L^4/3840EI$

          8.2-8 A fixed-end beam AB is subjected to a symmetric
triangular load of maximum intensity $q_0$ as shown in the
figure. Determine all reactions, the equation of the de-
flection curve, and the maximum deflection $\delta_{max}$ of the
beam.

Prob. 8.2-8
8.2-8 $R_A = R_B = q_0L/4$, $M_A = M_B = 5q_0L^2/96$,
$v = q_0x^2(25L^3 - 40L^2x + 16x^3)/960LEI$ for
$0 \le x \le L/2$, $\delta_{max} = 7q_0L^4/3840EI$

8.2-8 A fixed-end beam AB is subjected to a symmetric
triangular load of maximum intensity q0 as shown in the
figure. Determine all reactions, the equation of the de-
flection curve, and the maximum deflection δmax of the
beam.

Prob. 8.2-8
8.2-8 RA = RB = q0L/4, MA = MB = 5q0L^2/96,
v = q0x^2(25L^3 - 40L^2x + 16x^3)/960LEI for
0 ≤ x ≤ L/2, δmax = 7q0L^4/3840EI
