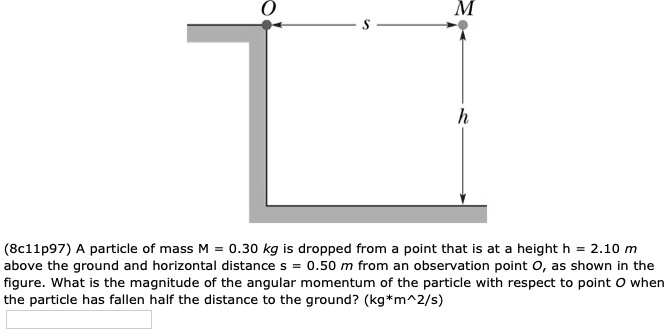

A particle of mass M = 0.30 kg is dropped from a point that is at a height h = 2.10 m above the ground and horizontal distance s = 0.50 m from an observation point O, as shown in the figure. What is the magnitude of the angular momentum of the particle with respect to point O when the particle has fallen half the distance to the ground? (kg*m^2/s)
Added by Andrea J.
Close
Step 1
We can use the equation of motion for this: v = sqrt(2*g*h/2) where g is the acceleration due to gravity (9.8 m/s^2) and h is the height (2.1 m). Plugging in the values, we get: v = sqrt(2*9.8*2.1/2) = sqrt(20.58) = 4.54 m/s Show more…
Show all steps
Your feedback will help us improve your experience
Frank Deng and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A particle of mass M = 0.50 kg is dropped from a point that is at a height h = 1.90 m above the ground and a horizontal distance s = 0.50 m from an observation point O, as shown in the figure. What is the magnitude of the angular momentum of the particle with respect to point O when the particle has fallen half the distance to the ground? (kg*m^2/s)
Shaiju T.

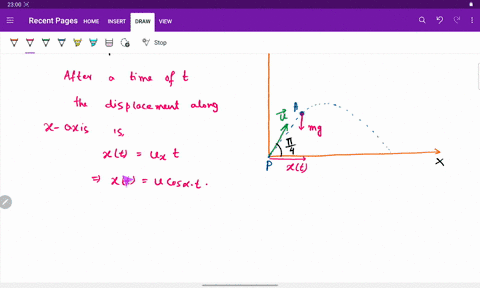

A particle of mass $0.2 \mathrm{~kg}$ is projected from a point $\mathrm{P}$ with a speed of $30 \mathrm{~m} \mathrm{~s}^{-1}$ at an angle $\pi / 4$ radian to the horizontal. Find the magnitude and direction of angular momentum of the particle about P after 3 second from launch.

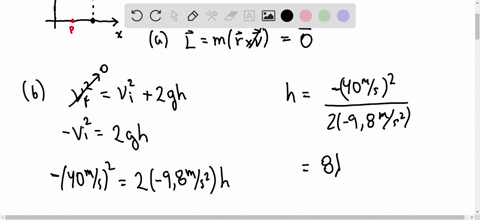

Angular Momentum In Fig. $11-42,$ a 0.400 $\mathrm{kg}$ ball is shot directly upward at initial speed 40.0 $\mathrm{m} / \mathrm{s} .$ What is its angular momentum about $P, 2.00 \mathrm{m}$ horizontally from the launch point, when the ball is (a) at maximum height and (b) halfway back to the ground? What is the torque on the ball about $P$ due to the gravitational force when the ball is (c) at maximum height and (d) halfway back to the ground?
