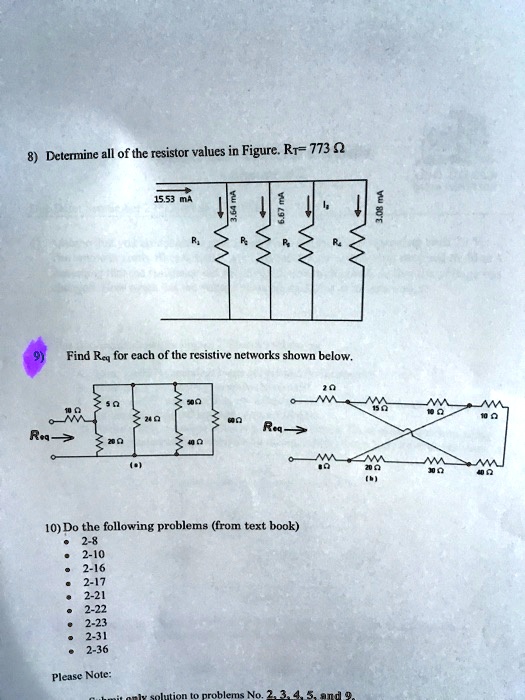

8) Determine all of the resistor values in Figure. $R_T = 773 \Omega$ 15.53 mA 3.64 mA 6.67 mA $I_t$ 3.08 mA $R_1$ $R_2$ $R_3$ $R_4$ $R_5$ 9) Find $R_{eq}$ for each of the resistive networks shown below. $10 \Omega$ $5 \Omega$ $24 \Omega$ $50 \Omega$ $R_{eq} \to$ $20 \Omega$ (a) $40 \Omega$ $2 \Omega$ $10 \Omega$ $10 \Omega$ $R_{eq} \to$ $8 \Omega$ $20 \Omega$ (b) $30 \Omega$ $40 \Omega$ 10) Do the following problems (from text book) $\bullet$ 2-8 $\bullet$ 2-10 $\bullet$ 2-16 $\bullet$ 2-17 $\bullet$ 2-21 $\bullet$ 2-22 $\bullet$ 2-23 $\bullet$ 2-31 $\bullet$ 2-36 Please Note: Submit only solution to problems No. 2, 3, 4, 5, and 9.
