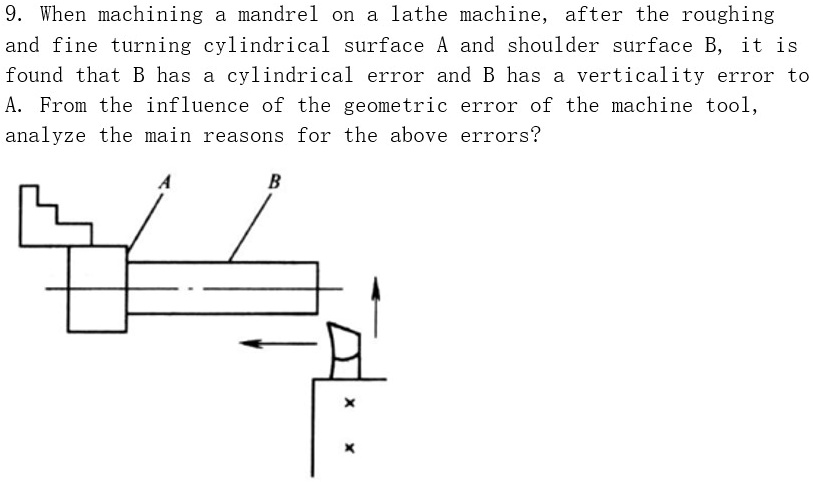

9. When machining a mandrel on a lathe machine, after the roughing and fine turning cylindrical surface A and shoulder surface B, it is found that B has a cylindrical error and B has a verticality error to A. From the influence of the geometric error of the machine tool, analyze the main reasons for the above errors?
